SKF THRUST BEARING

Stock Code:
51122_SKF
$247.70 incl GST

Stock Locations

  • Ballarat:
    49 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

51122

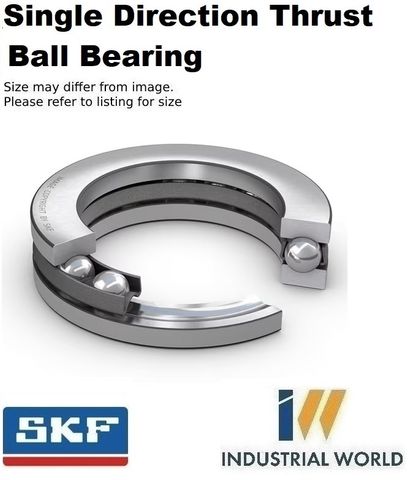

Single direction thrust ball bearing

Single direction thrust ball bearings can accommodate axial loads in one direction. They must not be subjected to any radial load. Their separable components facilitate mounting/dismounting and maintenance inspections. Many of the components are interchangeable. The shaft washers have a ground bore that enables an interference fit.

  • Separable design facilitates mounting/dismounting and maintenance inspections
  • Interchangeable components
  • Ground bore of shaft washers enable interference fit

Dimensions

Bore diameter110 mm
Outside diameter145 mm
Height25 mm

Properties

Axial load capabilitySingle-direction
Number of rows1
CageSheet metal
Housing washer typeFlat
Tolerance classNormal
Material, bearingBearing steel
CoatingWithout

Performance

Basic dynamic load rating83.2 kN
Basic static load rating285 kN
Reference speed2 200 r/min
Limiting speed3 200 r/min

Click here for catalogue information

View product table

Calculate rating life, frequencies etc.

Mount and dismount

Product Guide Attached.

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Brand:
    SKF
  • Metric/Imperial:
    Metric
