Loctite 567 High Temp Pipe Sealant 50ml

LOCTITE 567 TB50MLAU
Stock Code:
56747A
$31.19 incl GST

Stock Locations

  • Ballarat:
    17 In Stock
  • Shepparton:
    4 In Stock
10 On Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

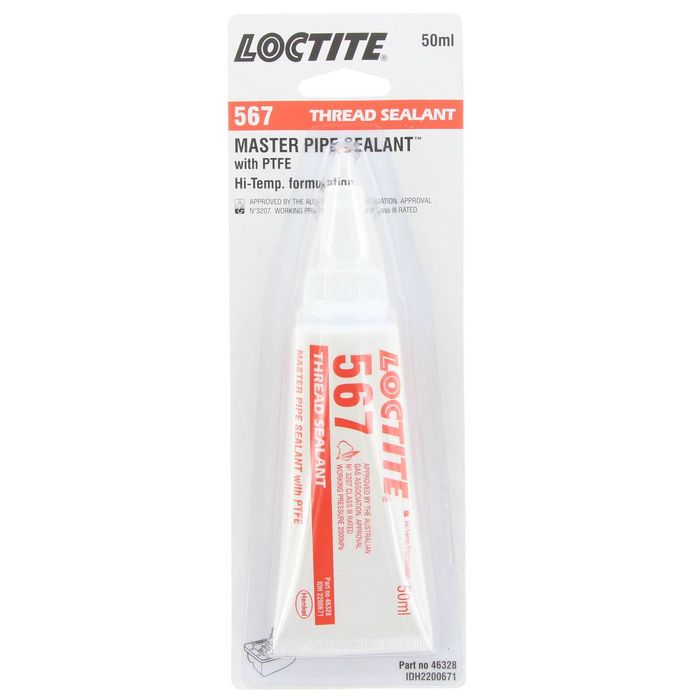

Loctite 567 High Temp Pipe Sealant 50ml

LOCTITE 567 is an off-white, UL approved, low disassembly strength methacrylate thread sealant, ideal for sealing coarse threads up to M80/R3”.
LOCTITE® 567 is an off-white, low strength, thixotropic methacrylate thread sealant. It cures in the absence of air and by contact with metals when confined within threads up to M80/R3”. It is best suited for use on coarse metal threads and its breakaway torque rating is 1.7Nm. Viscosity is 280,000 - 800,000 mPa·s and service temperature -55 to +200ºC. UL approved.
  • Single component - clean and easy to apply
  • Doesn’t creep, shrink or block systems
  • Provides an instant low pressure seal
  • Thixotropic and high/very high viscosity
  • UL approved

Technical Information

  • Agency Approvals / Specifications UL
  • Application Method Dispense System, Manual
  • Applications Pipe Sealing, Thread Sealing
  • Breakaway Torque, Steel M10 12.0 N·m (110.0 in./lb. )
  • Colour White: Off White
  • Cure Type Anaerobic Cure
  • Key Characteristics Immediate Low Pressure Sealing, Oil Tolerant, Strength: Low Strength, Temperature: High Temperature, Thixotropic
  • Operating Temperature -55.0 - 200.0 °C (-65.0 - 400.0 °F )
  • Physical Form Paste
  • Substrates Aluminium, Metal, Metal: Steel - Galvanised Steel, Metal: Steel - Stainless Steel, Thread Type: Coarse, Thread Type: Tapered
  • Technology Acrylic
  • Viscosity, 20 RPM 540000.0 mPa·s

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Brand:
    Loctite
