Description

DESCRIPTION

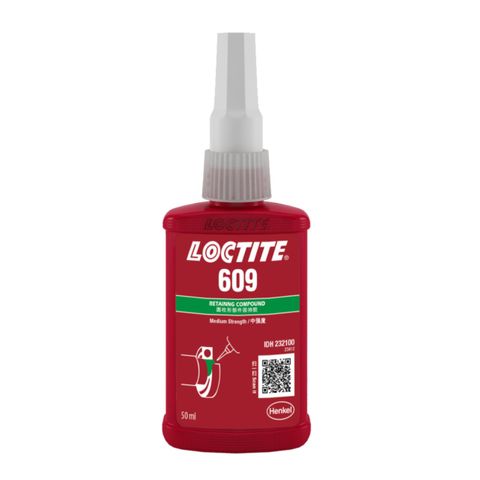

Loctite 609 Med/High St Retain Comp 50ml

High strength methacrylate ester acrylic retaining compound designed for the bonding of cylindrical fitting parts.
LOCTITE® 609 is a green, high strength methacrylate ester acrylic retaining compound designed for the bonding of cylindrical fitting parts. The product cures in the absence of air between close fitting metal surfaces. Typical applications include rotor to shafts in fractional and subfractional horsepower motors. Locks bushings and sleeves in housings on shafts. Augments press fits.
  • Low viscosity
  • Augments press fits
  • Prevents loosening and leakage from shock and vibration
  • Tested to the lot requirements of Military Specification Mil-R-46082B (this is a regional approval)
 Technical Information

  • Agency Approvals / Specifications ASTM D5363, MIL-R-46082B for existing designs
  • Application Method Dispense Gun, Dispense System, Manual
  • Applications For Close Fitting Cylindrical Parts, Retaining
  • Colour Green
  • Cure Type Anaerobic Cure
  • Fixture Time 10.0 min.
  • Gap Fill 0.15 mm
  • Key Characteristics Fluorescent, Shear Strength: High Shear Strength, Viscosity: Low Viscosity
  • Operating Temperature -65.0 - 300.0 °F (-55.0 - 150.0 °C )
  • Physical Form Liquid
  • Shear Strength, Steel 2300.0 psi (15.0 N/mm² )
  • Specific Gravity, @ 25.0 °C 1.1
  • Substrates Metal
  • Technology Acrylic
  • Viscosity 120.0 mPa·s (cP)
