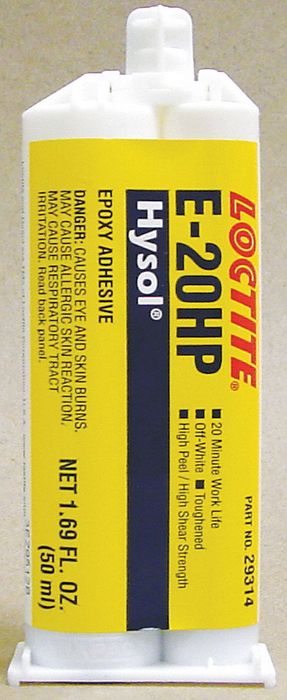

Loctite Hysol E20HP 20min HP 50ml (noz 98473)

LOCTITE EA E-20HP 50ML
Stock Code:
29314
$57.67 incl GST

Stock Locations

  • Ballarat:
    120 In Stock
  • Shepparton:
    Special Order
30 On Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

Loctite Hysol E20HP 20min HP 50ml (noz 98473)

2-part, toughened, medium-viscosity, industrial grade epoxy adhesive with a medium work life.
LOCTITE® EA E-20HP is an off-white, 2-part, toughened, medium-viscosity, industrial grade epoxy adhesive with a medium work life. The mixture cures at room temperature to form a tough bondline with high peel resistance and high shear strengths. It is resistant to a wide range of chemicals and solvents and is an excellent electrical insulator.
  • Forms a tough bondline that provides high peel resistance and high shear strengths
  • Provides excellent bond strengths to a wide variety of plastics and metals
  • Used as adhesive for bonding dry concrete or limestone for architectural applications
  • Ideal for general purpose industrial assembly

Technical Specifications

  • Application Method Dispense Gun, Dispense System
  • Applications Bonding Metal, Bonding Plastic
  • Cure Type Room Temperature (Ambient) Cure, Two Component MixCure Type Room Temperature (Ambient) Cure, Two Component Mix
  • FEA (Finite Element Analysis) Finite Strain, Viscoelastic
  • Key Characteristics Peel Strength: High Peel Strength, Shear Strength: High Shear Strength, Toughened, Viscosity: Medium Viscosity, Work Life: Medium Work LifeKey Characteristics Peel Strength: High Peel Strength, Shear Strength: High Shear Strength, Toughened, Viscosity: Medium Viscosity, Work Life: Medium Work Life
  • Mix Ratio, by Volume 2 : 1
  • Mix Ratio, by Weight 100 : 55
  • Number of Components 2 Part
  • Physical Form Liquid
  • Substrates Aluminium, Concrete, Metal, Metal: Steel, Metal: Steel - Stainless Steel, Plastic, Polyamide (Nylon), Polycarbonate, Wood
  • Technology Epoxy
  • Colour, Mixed White: Off White
  • Specific Gravity, Mixed @ 25.0 °C 1.03
  • Mixed
  • Specific Gravity, Mixed @ 25.0 °C 1.03
  • Resin
  • Colour, Resin Yellow: Light Yellow
  • Specific Gravity, Resin @ 25.0 °C 1.0
  • Viscosity, Resin @ 25.0 °C 40000.0 - 90000.0 mPa·s (cP)
  • Hardener
  • Colour, Hardener Yellow
  • Specific Gravity, Hardener @ 25.0 °C 1.1
  • Viscosity, Hardener @ 25.0 °C 5500.0 - 8000.0 mPa·s (cP)
