LOCTITE HY 4090 GY CR 50G AU

Stock Code:
2341573
$68.06 incl GST
Minimum Order Quantity: 10

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order

Must be ordered in multiples of 10

Make an Enquiry
Add to Favourites

Description

DESCRIPTION

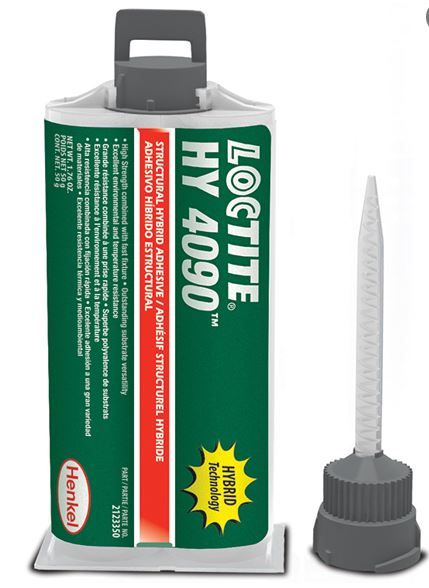

LOCTITE HY 4090 GY CR 50G AU

LOCTITE HY 4090 is an off-white to light yellow, high viscosity, 2-part hybrid, universal structural bonder with high humidity and vibration resistance.
LOCTITE® HY 4090 is a high viscosity, off-white to light yellow gel. It opens completely new application areas in structural bonding – for the very first time combining instant adhesive properties with those for epoxies to give more striking benefits. Fixture time of 90 - 180 seconds and suitable for gaps up to 5 mm. Resistant to vibration, shock loads and impacts with the ability to bond dissimilar substrates. Best application results are achieved with LOCTITE® 50 ml Adhesive Mixing Nozzle (item 1826921), LOCTITE® 400 ml Adhesive Mixing Nozzle (item 1573135), LOCTITE® 96001 (item 267452) or LOCTITE® 983439 (item 218311).
  • Vibration, shock loads and impact resistance
  • Temperature resistance up to 150 °C
  • Gap filling up to 5mm
  • High moisture resistance
  • UV resistant allowing outdoor applications
  • Viscoelastic & Finite Strain FEA data cards available

Technical Information

  •  Application Method Dispense Gun
  • Applications Bonding Dissimilar Materials, Bonding Plastic, Bonding Rubber, Construction, Direct Bonding, Edge Bonding, Exterior Repairs, Interior Repairs, Structural Bonding
  • Cure Type Room Temperature (Ambient) Cure, Two Component Mix
  • FEA (Finite Element Analysis) Finite Strain, Viscoelastic
  • Fixture Time <180.0 sec.
  • Gap Fill 2.0 mm
  • Mix Ratio, by Weight 1 : 1
  • Number of Components 2 Part
  • Physical Form Liquid
  • Shear Strength, Steel (grit blasted) 17.0 N/mm² (2420.0 psi )
  • Substrates Composite, Composite: Advanced Composites, Dry Surface, Elastomer: Highly Filled Elastomer, Epoxy, Fiberboard, Gel Coat, Laminate, Metal, Non-Gel Coat, Painted Surface, Phenolic, Plastic, Rubber, Thermoplastic, Thermoset, Urethane: Cast Urethane, Vinyl, Wood
  • Technology Hybrid Chemistry
  • Mixed
  • Color, Mixed White: Off WhiteColor, Mixed White: Off White
  • Key Characteristics, Mixed Cure Speed: Fast Cure, Gap Filling, Humidity Resistant, Impact Resistant, Moisture Resistant, UV Resistant, Vibration Resistant, Viscosity: High Viscosity
  • Operating Temperature, Mixed -40.0 - 300.0 °C (-40.0 - 284.0 °F )
  • Resin
  • Color, Resin Clear
  • Viscosity, Cone & Plate, Resin @ 25.0 °C 4000.0 - 7000.0 mPa·s (cP)
  • Hardener
  • Color, Hardener White: Off White
  • Viscosity, Cone & Plate, Hardener @ 25.0 °C 25000.0 - 40000.0 mPa·s (cP)
