Kincrome - Tow Behind Sprayer 117L 12V

Stock Code:
K16004
$1,351.90 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

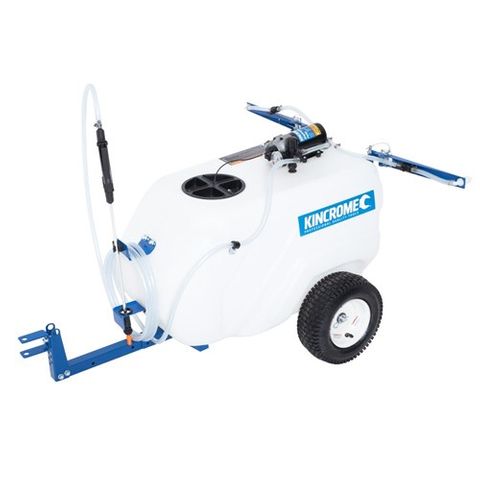

KINCROME - TOW BEHIND SPRAYER 117L 12V

K16004

The Kincrome 117 litre Tow Behind Broadcast and Spot Sprayer is a must have for all vineyards, hobby farmers and acreage lot owners. Simply connect the included hitch to your ATV or ride on or garden tractor to spray weeds, fence lines and tops of trees up to 5.8m tall. Spray water or pesticides (including Round-Up®) option which has twin spring loaded boom arms with a 3050mm overall spraying width, or use the spot sprayer with a 4.9m reinforced braided PVC clear hose for superior reach for more accurate applications. The unit has an extra thick (4mm) 117L UV-resistant tank which is compatible with virtually all herbicides and pesticides including RoundUp® and conveniently has litres and gallons moulded into the tank to make it easy to monitor and measure fluid levels more accurately. Equipped with a top quality Kincrome 12V on demand 100% duty cycle pump, allowing you to get the job done quickly and efficiently, without stopping for cool down time. The heavy duty all steel trailer chassis has been powder coated to prevent corrosion, increase durability and longevity to ensure it lasts for many seasons. There is a convenient drain plug at the base of the tank so it is easy to drain unused liquids bore flushing and vertical storage via the tow hitch.

FEATURES
• 12V 8.3LPM open flow, on-demand pump provides faster priming and longer life; 70 PSI max
• 100% Continuous duty rating
• Santoprene™ diaphragm and Viton® valves for superior reliability and chemical resistance including Roundup®
• Large-capacity tank design features extra-thick walls that are UV-resistant and compatible with virtually all pesticides
• Spring-loaded, breakaway boom arms fold away for compact storage with left and right boom nozzle control valves
• 3050mm Broadcast width spray nozzle
• Spray gun nozzle adjusts from stream to cone; shoots 5.8m vertically and 9m horizontally
• Full list of stocked spare parts available
• Suitable for most pesticides including Round Up, herbicides and water.
• Not suitable for chlorine or corrosive liquids.
CONTENTS
• 117L 12V Sprayer, with b/cast nozzle and hand sprayer
• 8.3LPM 12V 100% duty cycle pump with adjustable pressure regulator and gauge, fused leads & remote switch
• Steel powder coated trailer chassis & H/D wheels and tyres
• Instruction manual
TECHNICAL SPECIFICATIONS
Capacity117L
Measurements1150 X 660 X 740MM (Assembled)
Weight22.6KG
Weight Full139.6KG
Voltage12V DC
Amp Draw from Pump8 AMPS
Max Pressure70PSI
Max Flow Rate8.3 LPM



Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Brand:
    KINCROME
