Hex Bolt - M12x100 Zinc Plated (Box=25)

AS1110.1 / CLASS 8.8 - M12-1.75 x 30mm
Stock Code:
BH88ZCM120100
$2.10 incl GST
Minimum Order Quantity: 25

Stock Locations

  • Ballarat:
    69 In Stock
  • Shepparton:
    25 In Stock
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

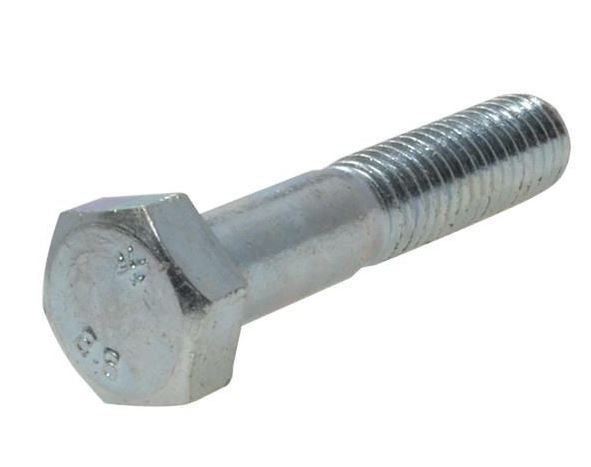

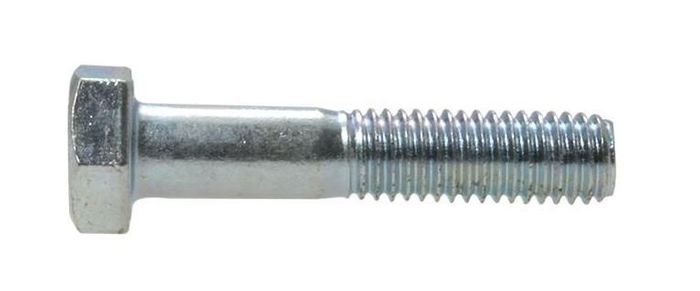

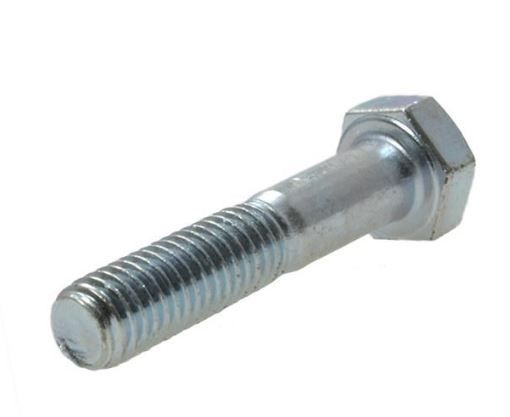

Hex Bolt - M12x100 mm Zinc Plated (Box=25)

Hex Bolts have a hexagon head, part thread and part shank and is used to fasten material together by inserting the bolt from the one end and securing it with either a nut on the other end or into a taped hole. A nut and bolt combination compresses everything together. To tighten the nut requires a socket and wrench or a spanner, If, while tightening the nut, the bolt turns with it, a second spanner or wrench is required to hold-on to the bolt while the nut is tightened. If thread length is critical there is a cross over where a hex bolt could be fully threaded. This is due to a gradual change in the fastener industry due to wholesalers wanting to reduce their stock holdings, now they only carry the shorter lengths as fully threaded. Therefore, if thread length is critical, always check our specifications or contact us prior to ordering.

Product

HEX BOLT

Finish
ZINC PLATED (RoHS Compliant)

Zinc Plated is the most common fastener of plating due to its the low cost and shinny bright silver finish. A thin layer of zinc is applied by either electroplating or mechanically. It is intended to be used internally. Whilst some people use it externally it is not recommended if corrosion is a concern. If you want a fastener that will withstand the outdoor elements choose from our Stainless steel range

Size
M12

Length / Dimension
100 mm

Thread
M12-1.75 x 30mm Thread length on older stock may vary

Specification
AS1110.1 / CLASS 8.8

QTY - Sold Individually


Click here for bolt technical specifications

Click here for hobson high tensile product guide

Click here for hobson breaking strength guide

Click here for high tensile & stainless steel head markings

Click here for Hex Bolts tightening torque class 8.8

Click here for product finish comparisons

Click here for bolt & set screw information


Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Thread Size:
    M12-1.75
  • Left or Right Hand:
    Right Hand
  • Material:
    Zinc Plated 8.8 Steel
  • Brand:
    Hobson
  • Metric/Imperial:
    Metric
  • Size:
    Each
  • Length:
    100 mm
