Hex Set Screw - M8x12 Zinc Plated (Box=200)

AS1110.1 / CLASS 8.8 - M8-1.25 x Fully Threaded
Stock Code:
BS88ZCM080012
$0.21 incl GST

Stock Locations

  • Ballarat:
    200 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

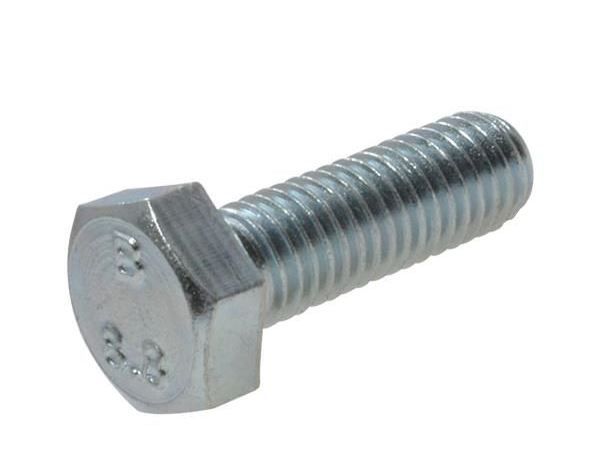

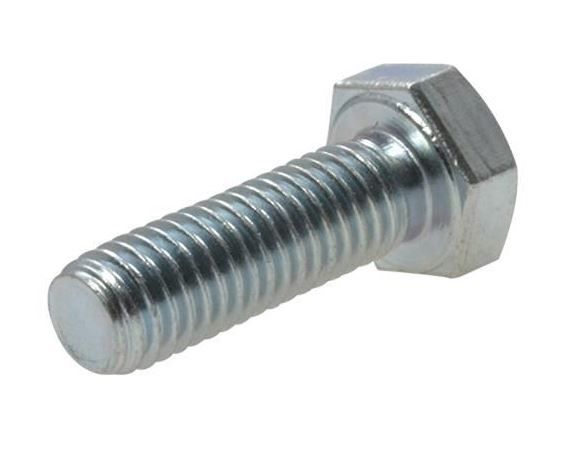

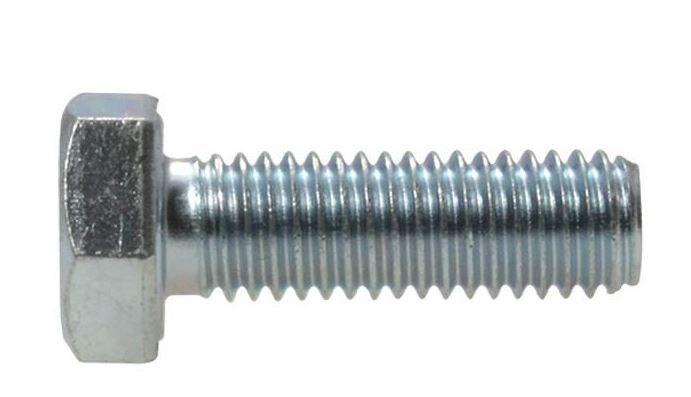

Hex Set Screw - M8x12 Zinc Plated (Box=200)

Hex Set Screws are fully threaded with a hexagon head, if you require an unthreaded section (called shank) then you need to search for a hex bolt. Hex set screws are often threaded into something such as a piece of machinery, rather than being used with a nut.

Screw:  Similar to a bolt but has a much longer thread almost to the head. It can be tightened with a nut or a threaded through hole or a blind hole. In some instances, a screw could cut or form its own thread (eg. timber screws, thread forming screws).

Finish

ZINC PLATED (RoHS Compliant)

Product is electroplated with zinc which is then passivated with a transparent conversion layer. Z/P products are recommended for indoor & noncorrosive environments.

Size
M8

Length / Dimension
12

Thread
M8-1.25 x Fully Threaded Thread length on older stock may vary

Specification
AS1110.2 / CLASS 8.8

QTY - Sold Individually


Click here for bolt technical specifications

Click here for bolt & set screw information

Click here for hobson breaking strength guide

Click here for hobson high tensile product guide

Click here for product finish comparisons

Click here for spanner selection for hex bolts & nuts metric

Click here for high tensile & stainless steel head markings


Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Thread Size:
    M8-1.25
  • Left or Right Hand:
    Right Hand
  • Material:
    Zinc Plated 8.8 Steel
  • Brand:
    Hobson
  • Metric/Imperial:
    Metric
  • Size:
    Each
  • Length:
    12 mm
