M12X25 Hex Bolt & Nut Class 8.8 Zinc Plated

Bag of 10
Stock Code:
FSKBH88ZCM120025
$8.54 incl GST

Stock Locations

  • Ballarat:
    5 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

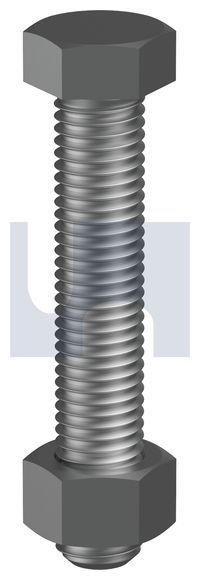

M12 X 25 Hex Bolt & Nut Class 8.8 Zinc Plated

Hex Bolts have a hexagon head, part thread and part shank and is used to fasten material together by inserting the bolt from the one end and securing it with either a nut on the other end or into a taped hole. A nut and bolt combination compresses everything together. To tighten the nut requires a socket and wrench or a spanner, If, while tightening the nut, the bolt turns with it, a second spanner or wrench is required to hold-on to the bolt while the nut is tightened. If thread length is critical there is a cross over where a hex bolt could be fully threaded. This is due to a gradual change in the fastener industry due to wholesalers wanting to reduce their stock holdings, now they only carry the shorter lengths as fully threaded. Therefore, if thread length is critical, always check our specifications or contact us prior to ordering

Finish
ZINC PLATED (RoHS Compliant)

Product is electroplated with zinc which is then passivated with a transparent conversion layer. Z/P products are recommended for indoor & noncorrosive environments.

Product
HEX BOLT & NUT

Size
M12

Specification
AS1110.1 / CLASS 8.8

Length / Dimension
25

Thread
M12-1.75 x Fully Threaded Thread length on older stock may vary

QTY - Bag of 10


Click here for bolt technical specifications

Click here for breaking strength guide

Click here for hobson product finish comparison

Click here for hobson high tensile product guide

Click here for hobson metric hex-bolt-properties

Click here for spanner selection chart metric

Click here for hobson hex bolt tightening torque 8.8 guide


Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Thread Size:
    M12-1.75
  • Left or Right Hand:
    Right Hand
  • Material:
    Zinc Plated 8 Steel
  • Brand:
    Hobson
  • Metric/Imperial:
    Metric
  • Size:
    Handy Bag
  • Length:
    25 mm
