SKF - Spherical Roller Bearing Tapered Bore

750 x 1000 x 185

Stock Code:

239/750CAK-W33-C3_SKF

$41,559.98 incl GST

Stock Locations

Ballarat:

Special Order
Shepparton:

Special Order

Make an Enquiry

Add to Favourites

Description

239/750 CAK/C3W33

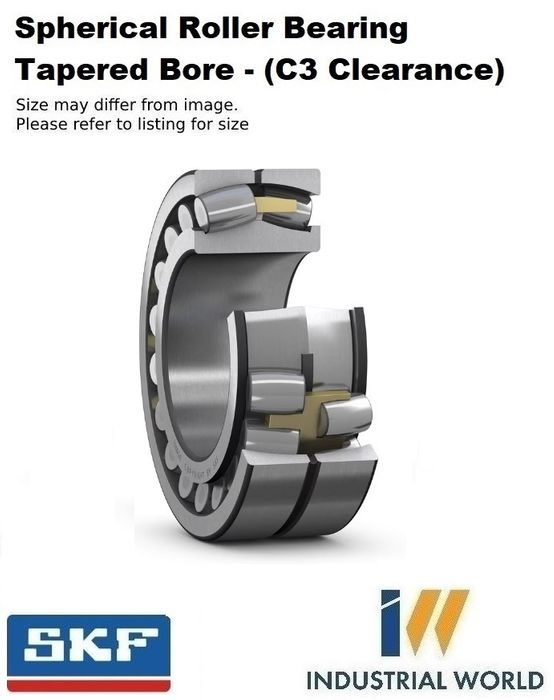

Spherical roller bearing with tapered bore and relubrication features

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.

Accommodate misalignment
High load carrying capacity
Relubrication features
Low friction and long service life
Increased wear resistance

Dimensions

Bore diameter	750 mm
Outside diameter	1 000 mm
Width	185 mm

Properties

Number of rows	2
Locating feature, bearing outer ring	Without
Bore type	Tapered 1:12
Cage	Machined metal
Radial internal clearance	C3
Sealing	Without
Lubricant	None
Relubrication feature	With
Candidate for remanufacturing	Yes
