SKF - System 24 - high load - wide temp -EP

LAGD Gas Driven - Single Point - 125 ml
Stock Code:
LAGD125/WA2_SKF
$67.63 incl GST

Stock Locations

  • Ballarat:
    1,473 In Stock
  • Shepparton:
    171 In Stock
300 On Order
Make an Enquiry
Add to Favourites

Description

LAGD125/WA2

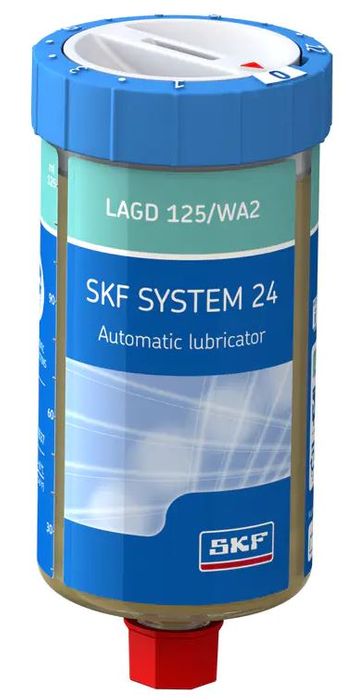

SKF SYSTEM 24 gas driven single point automatic lubricator

LAGD 125/WA2

LAGD 125/WA2 is filled with SKF LGWA 2 grease for wide temperature ranges and extreme pressures, recommended for electric motors, conveyors, fans and pumps. Our gas driven single point automatic lubricators are available in many configurations, pre-filled with SKF lubricants or empty, suitable for filling with oil. With tool-free activation and time-setting they allow easy, safe and accurate relubrication.

  • Flexible dispense rate from 1 to 12 months
  • ATEX zone 0 approved
  • Transparent lubricant container allows visual inspection of dispense rate
  • Compact size, suitable for restrictive areas
  • Improved reliability and optimized maintenance

Dimensions

Lubricant quantity   125 ml

SKF DIALSET PROGRAM TO CALCULATE SETTING, CLICK HERE

Performance

Degree of protection (IP)IP 68
Maximum feed line length0.3 m
Maximum pressure5 bar
Nominal emptying timeAdjustable, 1–12 months
Product weight0.19 kg

Properties

Ambient temperature range–20 to +60 °C
Connecting threadR 1/4
Drive mechanismGas cell producing inert gas
Intrinsically safe approvalII 1G Ex ia IIC T6 Ga, II 1D Ex ia IIIC T200 85°C Da, I M1 Ex ia I Ma
LubricantLGWA 2
Lubricant descriptionWide temperature range, extreme pressure, high load bearing grease
Lubricant operating temperature range–30 to +140 °C
NLGI consistency class2
Power sourceGas cell
Recommended applicationsFans and electric motors;Conveyor head and tail pulley bearings
Recommended storage temperature20 °C
Shelf life2 a

Click here for catalogue information

Lubricator product information

Product Guide Attached
