Richmond - Durolite Swivel Castor

75mm Grey Rubber Wheel 80kg
Stock Code:
S3380
$43.30 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

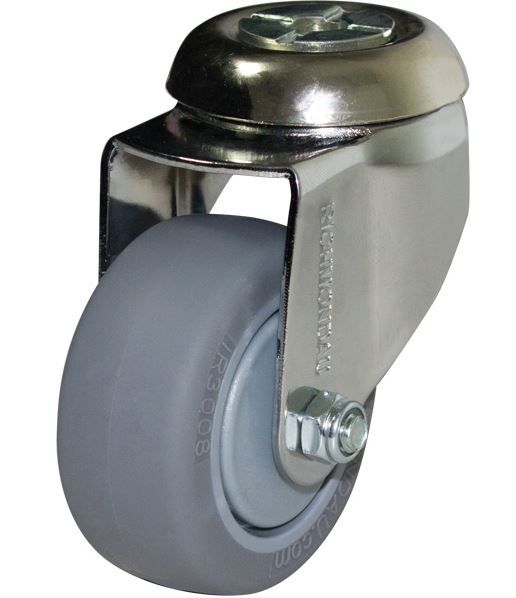

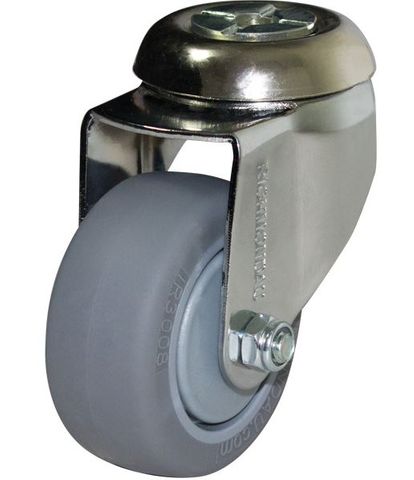

75mm Inst Rubber Swivel Chrome Durolite Castor (S3380)

The S3380 by Richmond Wheel and Castor Co. is a swivel frame castor and is fitted with a institutional rubber wheel. This swivel castor is in our chrome durolite bolt range and can safely take loads up to 80kg. The S3380 is assembled with ball bearings on the castors axle and is bolt mount. The swivel frame design of this castor allows full swivel rotation to enable steering. The outside diameter of the institutional rubber wheel is 75mm, the wheel width is 30mm and you can order separately (Part Number: iR3008).

Product CodeS3380
Wheel Diameter (mm)75
Frame TypeSwivel
Wheel Width (mm)30
Wheel TypeInstitutional Rubber
Wheel CodeIR3008
Wheel Bearing TypeBall Bearing
Castor Height (mm)105
Swivel Radius (mm)76
Bolt Hole Size (mm)12
Maximum Load Capacity (kg)80
Recommended Load Capacity (kg)45



Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Thread Size:
    M12 Hole
  • Material:
    Rubber - Grey / Nylon
  • Width:
    30 mm
  • Brand:
    RICHMOND
  • Chain Series:
    < 125 Kg - Chrome Durolite Series
  • Type:
    Swivel - Bolt Hole
  • Size:
    80 Kg
  • Diameter Outside:
    75 mm (3 inch)
  • Style:
    Zinc Plated
