SKF 420 ml / 400 g Grease Gun

lever action - 0.9 cm per stroke

Stock Code:

TLGH1_SKF

$61.07 incl GST

Stock Locations

Ballarat:

8 In Stock
Shepparton:

1 In Stock

Make an Enquiry

Add to Favourites

Description

TLGH 1

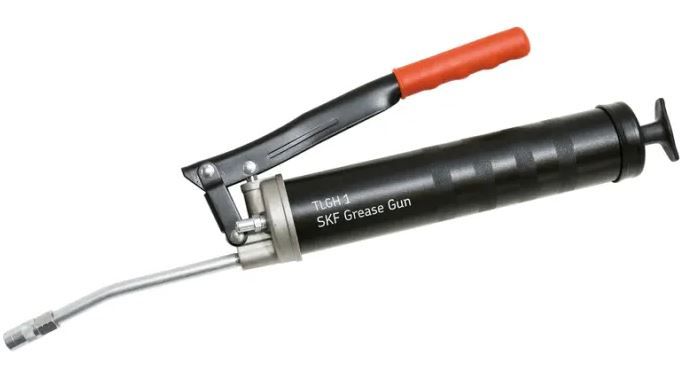

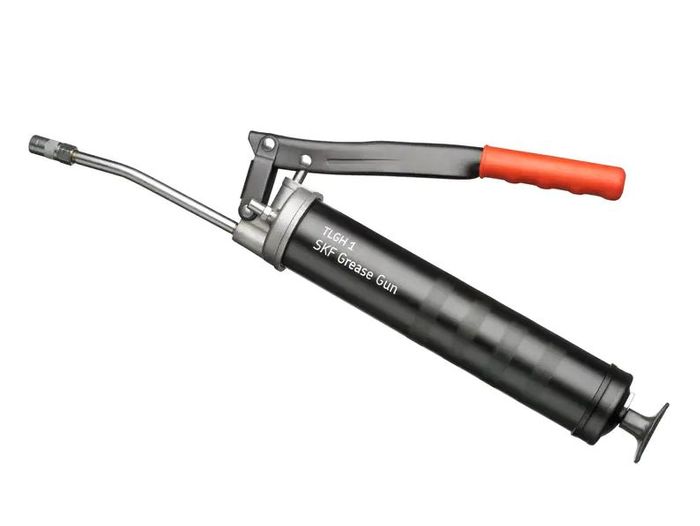

SKF Grease Gun TLGH 1

The SKF Grease Gun TLGH 1 is ideal for usage in agricultural, industrial and construction industries and for private use. The grease gun is delivered with a 175 mm (6.9 n.) extension pipe and hydraulic gripping nozzle.

Suitable for usage with cartridges and loose grease
Knurled body for firm and safe grip
High quality steel is dent-resistant for easy cartridge loading
Special piston design for smooth emptying of cartridges
Supplied with extension pipe and hydraulic gripping nozzle

Dimensions

Reservoir volume	500 ml
Filling connection	DIN 1283
Length	380 mm

Performance

Maximum pressure	40 MPa
Maximum Pressure	400 bar
Volume per stroke	0.9 ml

Properties

Recommended applications	For manual filling of greasing points in industrial, construction and agricultural applications
Grease supply	Loose or Cartridge
Use of standard grease cartridges	Yes, type DIN 1284
NLGI class of lubricant (max)	2
Suitable for grease nipples	Standard nipples as per DIN 71412
Operation	Two hands
Pipe/Hose thread connection	M10x1
Extension pipe	Yes, 175 mm
Hose	Optional
Can be filled with Grease filler pump	Yes, with SKF LAGF 18 or LAGF 50
Total product weight	1.16 kg
