SKF - System 24 - complete unit - 250 ml

high viscosity + solid lubricants
Stock Code:
TLSD250/EM2_SKF
$238.30 incl GST
Minimum Order Quantity: 10

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

TLSD 250/EM2

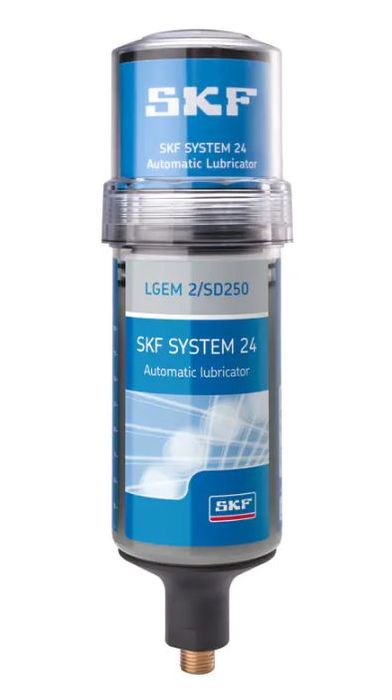

SKF SYSTEM 24 electro-mechanical single point automatic lubricator

TLSD 250/EM2 is filled with SKF LGEM 2 high viscosity bearing grease with solid lubricants, recommended for low speeds and high loads and vibrations. Our electro-mechanical single point automatic lubricators are available in many configurations, pre-filled with SKF lubricants, both as battery or cable driven. Using automatic lubricators improves employee safety, increases machine reliability and optimizes maintenance operations.

  • Flexible dispense rate from 1 to 12 months
  • Maximum discharge pressure of 5 bar during the dispensing period
  • LED status indicators
  • Compact size allows installation in restrictive areas
  • Suitable for both direct and remote installation
  • Supplied with support flange for enhanced sturdiness

Dimensions

Lubricant quantity 250 ml

SKF DIALSET PROGRAM TO CALCULATE SETTING, CLICK HERE

Performance

Degree of protection (IP)IP 65
Highest dispense setting8.3 mL/d
Lowest dispense setting0.7 mL/d
Maximum feed line length3 m
Maximum pressure5 bar
Nominal emptying timeUser adjustable: 1, 2, 3, 4, 6, 8, 10 and 12 months
Product weight0.72 kg

Properties

Ambient temperature range0 to +50 °C
BatteryBattery pack, TLSD 1-BAT
Battery capacity2.7 A·h
Battery typeAlkaline manganese
Battery voltage4.5 V
Connecting threadG 1/4
Drive mechanismElectro mechanical
LED indicatorGreen LED (every 30 sec): OK;Yellow LED (every 30 sec): Pre-warning low battery power;Yellow LED (every 5 sec): Pre-warning high back pressure;Red LED (every 5 sec): Warning, stopped on error;Red LED (every 2 sec): Warning, empty cartridge
LubricantLGEM 2
Lubricant descriptionHigh viscosity bearing grease with solid lubricants for heavy loads, heavy vibrations and slow rotations
Lubricant operating temperature range–20 to +120 °C
NLGI consistency class2
Power sourceBattery pack
Recommended applicationsRolling element bearings running at low speed and very high loads;Jaw crushers;Crane arms

Click here for catalogue information

Lubricator product information

Product Guide Attached
