SKF - System 24 - chain oil food grade - gen purp

LAGD Gas Driven - Single Point - 125 ml
Stock Code:
LAGD125/FM100_SKF
$79.55 incl GST

Stock Locations

  • Ballarat:
    110 In Stock
  • Shepparton:
    Special Order

Must be ordered in multiples of 10

Make an Enquiry
Add to Favourites

Description

LAGD125/FM100

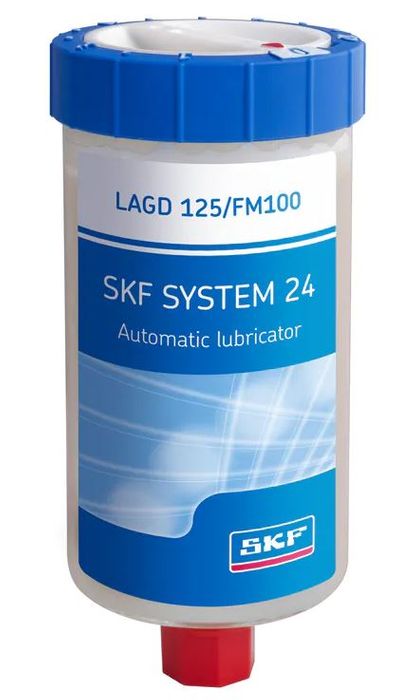

SKF SYSTEM 24 gas driven single point automatic lubricator

LAGD 125/FM100 is filled with SKF LFFM 100 food grade chain oil with excellent properties for moist and low temperature environments. Our gas driven single point automatic lubricators are available in many configurations, pre-filled with SKF lubricants or empty, suitable for filling with oil. With tool-free activation and time-setting they allow easy, safe and accurate relubrication.

  • Flexible dispense rate from 1 to 12 months
  • ATEX zone 0 approved
  • Transparent lubricant container allows visual inspection of dispense rate
  • Compact size, suitable for restrictive areas
  • Improved reliability and optimized maintenance

Dimensions

Lubricant quantity 125 ml

SKF DIALSET PROGRAM TO CALCULATE SETTING, CLICK HERE

Performance

Degree of protection (IP)IP 68
Maximum feed line length1.5 m
Maximum pressure5 bar
Nominal emptying timeAdjustable, 1–12 months
Product weight0.18 kg

Properties

Ambient temperature range–20 to +60 °C
CertificationsNSF H1; Halal; Kosher
Connecting threadR 1/4
Drive mechanismGas cell producing inert gas
Intrinsically safe approvalII 1G Ex ia IIC T6 Ga, II 1D Ex ia IIIC T200 85°C Da, I M1 Ex ia I Ma
LubricantLFFM 100
Lubricant descriptionHigh-performance synthetic food grade chain oil
Lubricant operating temperature range–30 to +130 °C
Power sourceGas cell
Recommended applicationsGeneral chain lubrication as in confectionery industries and fruit and vegetable processing
Recommended storage temperature20 °C
Shelf life2 a
Special featuresNon-return valve included



Click here for catalogue information

Lubricator product information

Product Guide Attached
