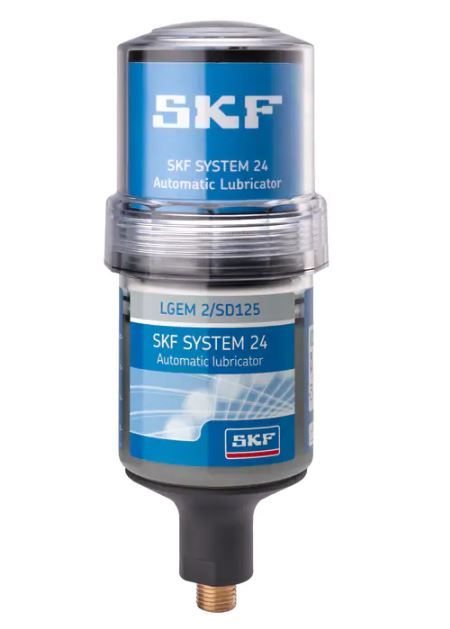

SKF - System 24 - complete unit - 125 ml

high viscosity + solid lubricants

Stock Code:

TLSD125/EM2_SKF

$208.34 incl GST

Minimum Order Quantity: 10

Stock Locations

Ballarat:

Special Order
Shepparton:

Special Order

Make an Enquiry

Add to Favourites

Description

TLSD 125/EM2

SKF SYSTEM 24 electro-mechanical single point automatic lubricator

TLSD 125/EM2 is filled with SKF LGEM 2 high viscosity bearing grease with solid lubricants, recommended for low speeds and high loads and vibrations. Our electro-mechanical single point automatic lubricators are available in many configurations, pre-filled with SKF lubricants, both as battery or cable driven. Using automatic lubricators improves employee safety, increases machine reliability and optimizes maintenance operations.

Flexible dispense rate from 1 to 12 months
Maximum discharge pressure of 5 bar during the dispensing period
LED status indicators
Compact size allows installation in restrictive areas
Suitable for both direct and remote installation
Supplied with support flange for enhanced sturdiness

Dimensions

Lubricant quantity 125 ml

SKF DIALSET PROGRAM TO CALCULATE SETTING, CLICK HERE

Performance

Degree of protection (IP)	IP 65
Highest dispense setting	4.1 mL/d
Lowest dispense setting	0.3 mL/d
Maximum feed line length	3 m
Maximum pressure	5 bar
Nominal emptying time	User adjustable: 1, 2, 3, 4, 6, 8, 10 and 12 months
Product weight	0.56 kg

Properties

Ambient temperature range	0 to +50 °C
Battery	Battery pack, TLSD 1-BAT
Battery capacity	2.7 A·h
Battery type	Alkaline manganese
Battery voltage	4.5 V
Connecting thread	G 1/4
Drive mechanism	Electro mechanical
LED indicator	Green LED (every 30 sec): OK;Yellow LED (every 30 sec): Pre-warning low battery power;Yellow LED (every 5 sec): Pre-warning high back pressure;Red LED (every 5 sec): Warning, stopped on error;Red LED (every 2 sec): Warning, empty cartridge
Lubricant	LGEM 2
Lubricant description	High viscosity bearing grease with solid lubricants for heavy loads, heavy vibrations and slow rotations
Lubricant operating temperature range	–20 to +120 °C
NLGI consistency class	2
Power source	Battery pack
Recommended applications	Rolling element bearings running at low speed and very high loads;Jaw crushers;Crane arms
