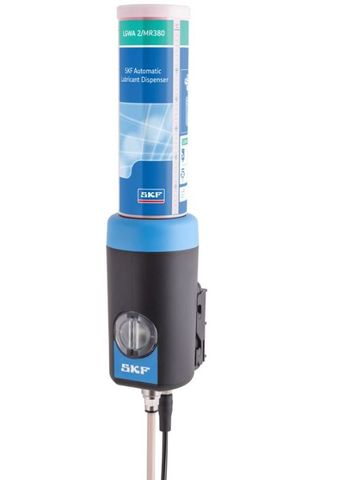

SKF - System 24 - TLMR series - Complete unit - DC

380ml - WA2 - 12-24 V DC driven
Stock Code:
TLMR201/38WA2_SKF
$1,203.51 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

TLMR 201/38WA2

Electro-mechanical single point automatic lubricator, 12-24V DC powered

TLMR101/38WA2 is filled with SKF LGWA 2 grease for wide temperature ranges and extreme pressures, recommended for electric motors, conveyors, fans and pumps. With a relatively high pressure, SKF TLMR can operate at long distances and provide optimum results with difficult-to-reach and unsafe lubrication points. Its robust design makes them suitable for operating in a wide temperature range in presence of vibrations. Powered by batteries or 12-24 V DC, and delivered with or without grease.

  • Flexible temperature independent dispense rate from 1 to 24 months
  • Available cartridges of 120 and 380 ml of SKF grease
  • Maximum discharge pressure of 30 bars (435 psi) during the dispensing period
  • Wide temperature range, especially suitable for engine rooms, and hot fan applications, as well as wind turbine applications.

Dimensions

Lubricant quantity 380 ml

SKF DIALSET PROGRAM TO CALCULATE SETTING, CLICK HERE

Performance

Degree of protection (IP)DIN EN 60529: IP 67;DIN 40 050-9: IP 6k9k
Highest dispense setting 120 ml cartridge3.9 mL/d
Highest dispense setting 380 ml cartridge12.5 mL/d
Lowest dispense setting 120 ml cartridge0.16 mL/d
Lowest dispense setting 380 ml cartridge0.5 mL/d
Maximum feed line length5 m
Maximum pressure30 bar
Nominal emptying timeUser adjustable: 1, 2, 3, 6, 9, 12, 18 and 24 months or purge
Product weight1.41 kg

Properties

Ambient temperature range–25 to +70 °C
Batterynone
Connecting threadG 1/4
Drive mechanismElectro mechanical
LED indicatorGreen LED (every 8 sec): OK;Green and red LED (every 8 sec): Almost empty;Red LED (every 8 sec): Error
LubricantLGWA 2
Lubricant descriptionWide temperature range, extreme pressure, high load bearing grease
Lubricant operating temperature range–30 to +140 °C
NLGI consistency class2
Power source12-24 V DC via M12-A connection
Purge setting31 ml

Click here for catalogue information

Lubricator product information

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Brand:
    SKF
