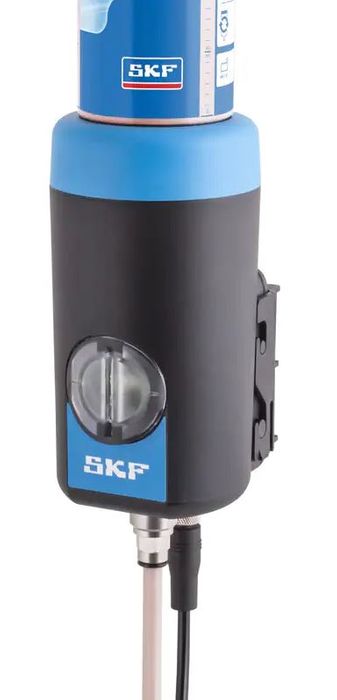

SKF - Sytem 24 - TLMR Pump unit -12-24 V DC Driven

Stock Code:

TLMR201_SKF

$950.14 incl GST

Stock Locations

Ballarat:

Special Order
Shepparton:

Special Order

Make an Enquiry

Add to Favourites

Description

TLMR 201

Electro-mechanical single point automatic lubricator, 12-24V DC powered

With a relatively high dispensing pressure, SKF TLMR can operate at long distances and provide optimum results with difficult-to-reach and unsafe lubrication points. Its robust design makes them suitable for operating in a wide temperature range in presence of vibrations. Powered by batteries or 12-24 V DC, and delivered with or without grease.

Flexible temperature independent dispense rate from 1 to 24 months
Available cartridges of 120 and 380 ml of SKF grease
Maximum discharge pressure of 30 bars (435 psi) during the dispensing period
Wide temperature range, especially suitable for engine rooms, and hot fan applications, as well as wind turbine applications.

Performance

Degree of protection (IP)	DIN EN 60529: IP 67;DIN 40 050-9: IP 6k9k
Highest dispense setting 120 ml cartridge	3.9 mL/d
Highest dispense setting 380 ml cartridge	12.5 mL/d
Lowest dispense setting 120 ml cartridge	0.16 mL/d
Lowest dispense setting 380 ml cartridge	0.5 mL/d
Maximum feed line length	5 m
Maximum pressure	30 bar
Nominal emptying time	User adjustable: 1, 2, 3, 6, 9, 12, 18 and 24 months or purge
Product weight	0.9 kg

Properties

Ambient temperature range	–25 to +70 °C
Battery	none
Connecting thread	G 1/4
Drive mechanism	Electro mechanical
LED indicator	Green LED (every 8 sec): OK;Green and red LED (every 8 sec): Almost empty;Red LED (every 8 sec): Error
Power source	12-24 V DC via M12-A connection
Purge setting	31 ml
