SKF grease - ext high viscosity + solid lubricants

moly + graphite - 18 Kg pail
Stock Code:
LGEV2/18_SKF
$1,322.31 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

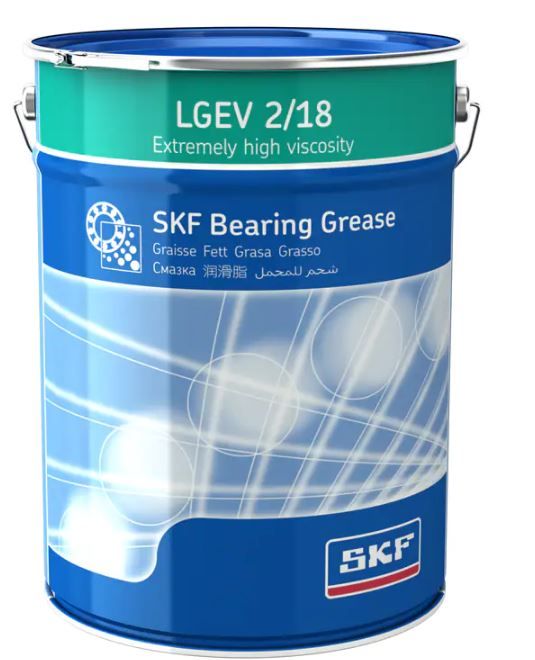

LGEV 2/18

SKF bearing grease LGEV 2 in 18 kg pail

SKF LGEV 2 is a mineral oil based grease, using a lithium-calcium soap. Its high content of molybdenum disulphide and graphite, in conjunction with an extremely high viscosity oil, provide outstanding protection under the harshest conditions involving high loads, slow rotations and severe vibrations.Typical applications:• Trunnion bearings on rotating drums• Support and thrust rollers on rotary klins and dryers• Bucket wheel excavators• Slewing ring bearings• High pressure roller mills• Crushers• Converter bearings

  • Extremely suitable for lubricating large sized spherical roller bearings subject to high loads and slow rotations, a situation where microslip is likely to occur
  • Extremely mechnically stable providing good water resistance and corrosion protection

Dimensions

Product weight18 kg

Performance

Suitable for High load applications++
Suitable for Vertical shaft applicationsΟ
Suitable for applications with Oscilating movementsΟ
Suitable for applications with Severe vibrations+
Suitable for applications that require Rust protection+
Suitable for applications that require Water resistance+
Suitable for applications that require Frequent start-up++
Speed (max.) n x dm (x 1000)300
Operating temperature range-10.0  –  120.0 °C
Dropping point (min) ISO 2176180 °C
Penetration DIN ISO 2137, Worked, 60 strokes (10⁻¹mm)265 - 295
Penetration DIN ISO 2137, Prolonged (max.), 100 000 strokes, 10⁻¹mm+50
Mechanical stability - Roll stability, ASTM D1831 (max.) 50 hrs at 80°C, 10⁻¹mm+50
Mechanical stability, V2F test, 144 hrsM
Corrosion protection, Emcor, ISO 11007, Distilled water0-0
Corrosion protection, Emcor, ISO 11007 modified, Water washout0-0
Corrosion protection, Emcor, ISO 11007 modified, 0.5% NaCl2-2
Water resistance (max.) DIN 51807/1, 3 hrs at 90 °C1
Oil separation DIN 51817, 40°C, %1-5
Lubrication ability, R2F test B at 120°CPass at 100°C
Copper corrosion (max.) DIN 51811 /ASTM D4048, 24 hrs at 100°C1 max.
Rolling bearing grease life (max.) ROF test, L50 life, 10000 r/min, hrs at °C1000 at 100°C
EP performance - 4 ball - Wear scar (max.) DIN 51350/5, 1400N1.2 mm
EP performance - 4 ball - Weld load (min.) DIN 51350/43 000 N

Properties

DIN 51825 codeKPF2K-10
NLGI consistency class2
ThickenerLithium/calcium
ColourBlack
Base oil typeMineral
Base oil viscosity DIN 51562 at 40 °C1 020 mm²/s
Base oil viscosity DIN 51562 at 100 °C47 mm²/s
Shelf life5 year
Packsize18 kg pail
Available for single point lubricationno

Logistics

Product net weight18 kg
eClass code23-06-01-01
UNSPSC code15121902
