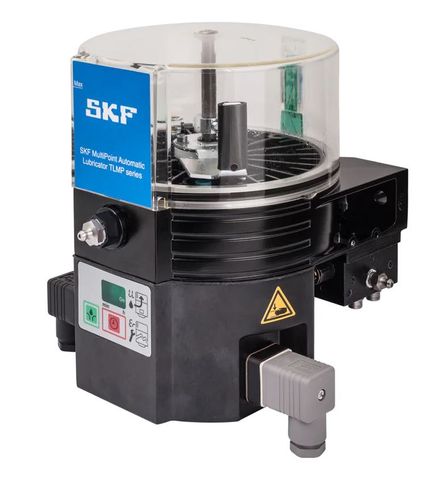

SKF Multipoint Lubrication System -230 V 1-8 point

Complete kit - upto to 5 mtr length

Stock Code:

TLMP1008/230V_SKF

$2,635.47 incl GST

Stock Locations

Ballarat:

Special Order
Shepparton:

Special Order

Make an Enquiry

Add to Favourites

Description

TLMP1008/230V

SKF Multipoint Lubrication System -230 V 1-8 point

SKF Multi point automatic lubricators are sturdy and durable systems packaged as complete kits, including the lubricator, required tubing, and connectors. Designed to supply from one to eight lubrication points, the lubricators feature pluggable outlets and are easy to install and program via a keypad with LED display. Featuring a reservoir capacity of nearly one litre, the lubricators have a stirring paddle to prevent grease separation, making them suitable for more lubricants. With a high IP protection rating, they are vibration resistant, withstand equipment washdowns, and prevent contamination ingress.

Easy to install and program
Complete kit
Suitable for up to 8 lubrication points
Low-level and malfunction alarms, remote notification possible
Machine steering capable
Developed for industrial applications, as well as agricultural and off-road vehicles

Dimensions

Dimensions (W x L x H)

237 x 214 x 231 mm

Properties

Type	Multipoint lubricator
Recommended applications	Various industrial applications with mutiple lubrication points
Drive mechanism	Electro mechanical (machine steered)
Lubrication outlets	1-8
Suitable grease consistency	NLGI 2, 3
Maximum Pressure	205 bar
Maximum pressure	20.5 MPa
Dispense rate range	0.1 – 40.0 ml/d
Lowest dispense setting	0.1 ml/d
Highest dispense setting	40 ml/d
Maximum feed line length	5 000 mm
Reservoir volume	1 000 ml
Power source	Electric (external)
Voltage	210.0 – 250.0 V
Amperage (max)	0.5 A
External steering	Yes
Alarms	Yes, blocked feed lines, empty reservoir. Internal and external
Mounting position	Vertical
Degree of protection (IP)	IP 67
Housing material	Metal
Electric connection	DIN 43650/A (EN 175301-803)
Ambient temperature range	-25.0 – 70.0 °C
Content	1x Pump TLMP 1008/230V Set of fitting material 2x Electrical connectors 1x 20m plastic pipe nylon 6 x 1.5 mm 8x straight tube connectors 8x tube connector plugs 7x outlet closure plugs
Total product weight	6.7 kg
