SKF - System 24 - complete unit - 250 ml

chain oil - medium temp
Stock Code:
TLSD250/HMT68_SKF
$256.81 incl GST
Minimum Order Quantity: 10

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

TLSD250/HMT68

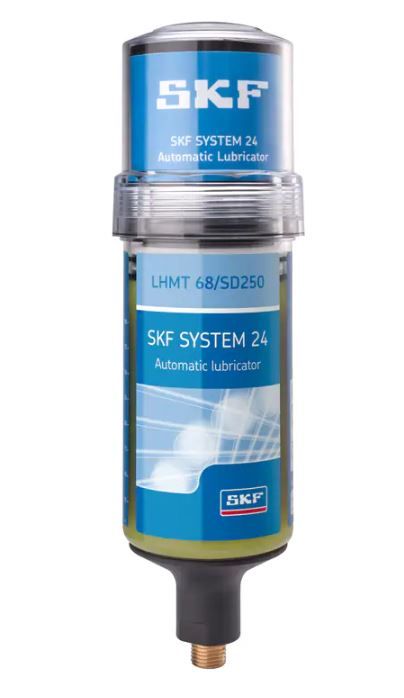

SKF SYSTEM 24 electro-mechanical single point automatic lubricator

TLSD 250/HMT68 is filled with SKF LHMT 68 high-performance mineral chain oil with high anti-wear protection. Our electro-mechanical single point automatic lubricators are available in many configurations, pre-filled with SKF lubricants, both as battery or cable driven. Using automatic lubricators improves employee safety, increases machine reliability and optimizes maintenance operations.
  • Flexible dispense rate from 1 to 12 months
  • Maximum discharge pressure of 5 bar during the dispensing period
  • LED status indicators
  • Compact size allows installation in restrictive areas
  • Suitable for both direct and remote installation
  • Supplied with support flange for enhanced sturdiness

Dimensions

Lubricant quantity  250ml

Performance

Degree of protection (IP)IP 65
Highest dispense setting8.3 mL/d
Lowest dispense setting0.7 mL/d
Maximum feed line length5 m
Maximum pressure5 bar
Nominal emptying timeUser adjustable: 1, 2, 3, 4, 6, 8, 10 and 12 months
Product weight0.81 kg

Properties

Ambient temperature range0 to +50 °C
BatteryBattery pack, TLSD 1-BAT
Battery capacity2.7 A·h
Battery typeAlkaline manganese
Battery voltage4.5 V
Connecting threadG 1/4
Drive mechanismElectro mechanical
LED indicatorGreen LED (every 30 sec): OK;Yellow LED (every 30 sec): Pre-warning low battery power;Yellow LED (every 5 sec): Pre-warning high back pressure;Red LED (every 5 sec): Warning, stopped on error;Red LED (every 2 sec): Warning, empty cartridge
LubricantLHMT 68
Lubricant descriptionHigh-performance mineral chain oil
Lubricant operating temperature range–20 to +100 °C
Power sourceBattery pack
Recommended applicationsConveyor, Drive and Lift chains operating at medium temperatures;Ovens



Click here for catalogue information

Lubricator product information

Product Guide Attached
