SKF - grease filler pump suit 50 kg drum

350-385mm dia - 675mm max height
Stock Code:
LAGF50_SKF
$704.44 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

LAGF50

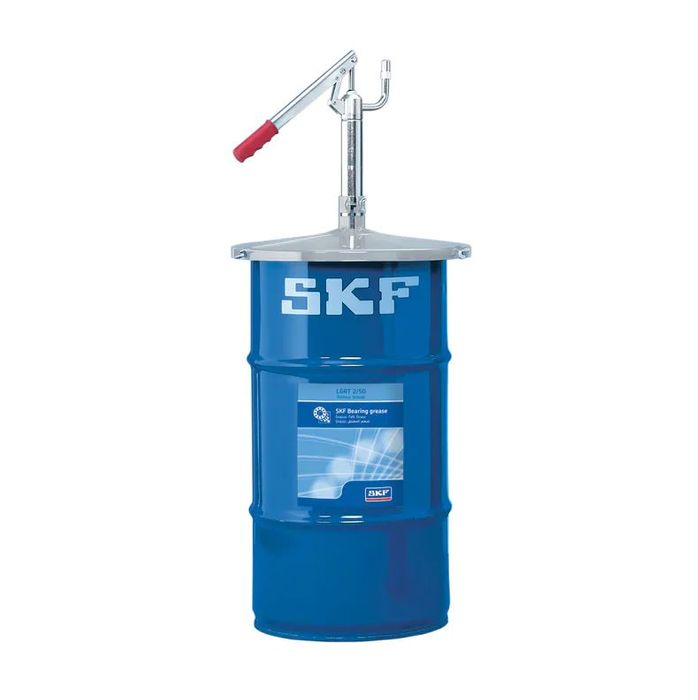

SKF Grease Filler Pump LAGF 50
(Suits 50 KG Drum)


Best lubrication practices say that each type of grease requires an individual grease gun and that the refilling has to be a clean process. SKF Grease Filler Pumps are designed to achieve this goal. The LAGF 50 is operated with a mechnical lever and enables optimum cleanliness for filling grease guns from a 50 kg drum.

  • Quick filling with low pressure high stroke volume
  • Easy usage with all items included
  • Tested and approved for all SKF greases
  • Ideal for usage together with SKF Bearing Packer VKN 550

Properties

Recommended applicationsgrease filler pump for drums or pails designed to fill grease guns or TLRD grease dispensers
For type/size of grease drum50 kg grease drum
Operationmanual pump with handle
Mobilitystationary
NLGI class of lubricant (max)2
Connectiongreasing point: DIN 1283 nipple
Maximum Pressure3 MPa
Maximum Pressure30 bar
Suitable drum inner diameter350.0  –  385.0 mm
Suitable drum inside height (max)675 mm
Air pressure[object Object] bar
Pressure ratio0
Volume per stroke45 ml
HoseNo
Optional TrolleyLAGT 18 - 50
Power sourcemanual
Materialsteel
Material handlesteel with plastic grip
Ambient temperature range5.0  –  50.0 °C
Recommended storage temperature10.0  –  40.0 °C
Relative humidity< 65 %
Contentgrease pump with pump handle, drum cover plate, drum followerplate
Total product weight6.08 kg

Logistics

Product net weight6.08 kg
eClass code23-06-91-06
UNSPSC code15121902
