Socket Head Cap Screw - M14 x 220 (Box 10)

DIN 912 / CLASS 12.9 - M14-2.00 x 40 Thread
Stock Code:
SHSOPCM140220
$114.00 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

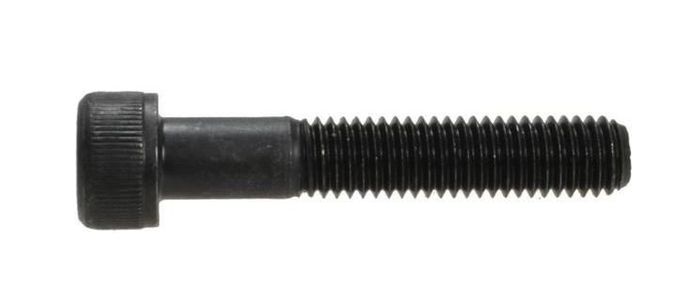

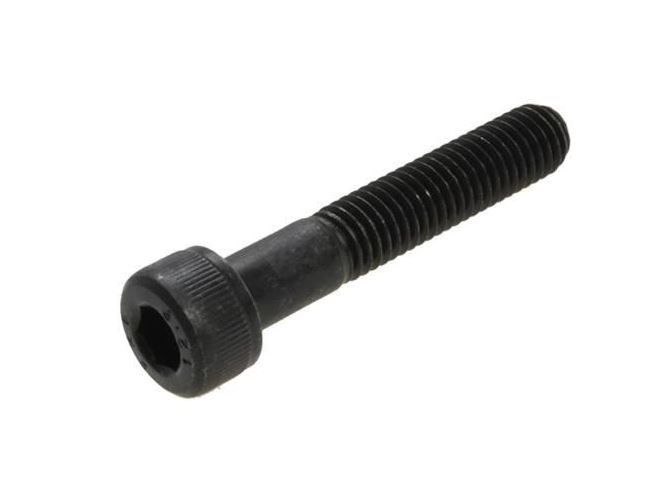

Socket Head Cap Screw - M14 x 220 (Box 10)

  • Socket Head Cap Screws are ideal when space is limited with easy access to the drive along with the highest strength rating of most fasteners. Socket head cap screws are easy to identify due to their unique head style and smart appearance. The top of the cylindrical head on a socket head cap screw is flat and chamfered, the side may be plain or knurled and the bearing surface is flat. Use a hex key also called an Allen wrench or hex power bit to drive a socket screw
  • Socket head cap screws are either full or part threaded and have uniformly threads, meaning they maintain the exact same diameter throughout the entire length of the threaded section of the fastener, unlike self tapping or chipboard screws which have tapered threads. They are one of our most popular fasteners
  • Also known as: Socket Head Allen Bolts, Socket Hex Cap Screws, Cap Screws, Allen Bolt, Socket Screws, SHCS
Finish
PLAIN

Black or plain finish is unfinished (bare steel) has no actual protective coating. There may be an oil residue which provides some shelf life but no real corrosion protection when in use. The term “black” is an old industry term for plain. Depending on the material grade and heat treatment process the colour can vary from a shiny oily finish to a dull black

Product
SOCKET HEAD CAP SCREW

Size
M14

Specification
DIN 912 / CLASS 12.9

Length / Dimension
220

Thread
M14-2.00 x 40 Thread length on older stock may vary

QTY - Sold Individually


Click here for bolt technical specifications chart

Click here for product finish comparison

Click here for socket head cap screw Class 12.9 tightening torque

Click here for SOKO recommended tightening torque

Click here for breaking strength guide

Click here for hobson SOKO product guide


Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Thread Size:
    M14-2.00
  • Left or Right Hand:
    Right Hand
  • Material:
    Plan 12.9 Steel
  • Brand:
    Hobson
  • Metric/Imperial:
    Metric
  • Size:
    Each
  • Length:
    220 mm
