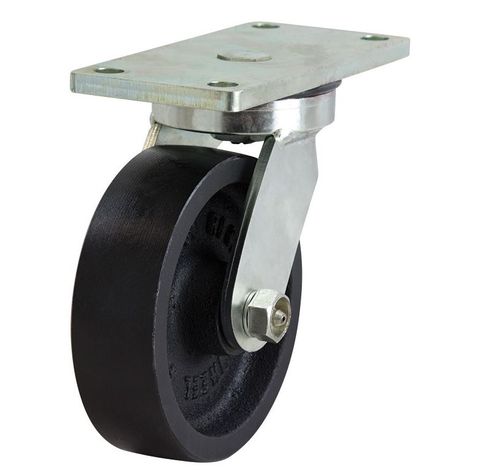

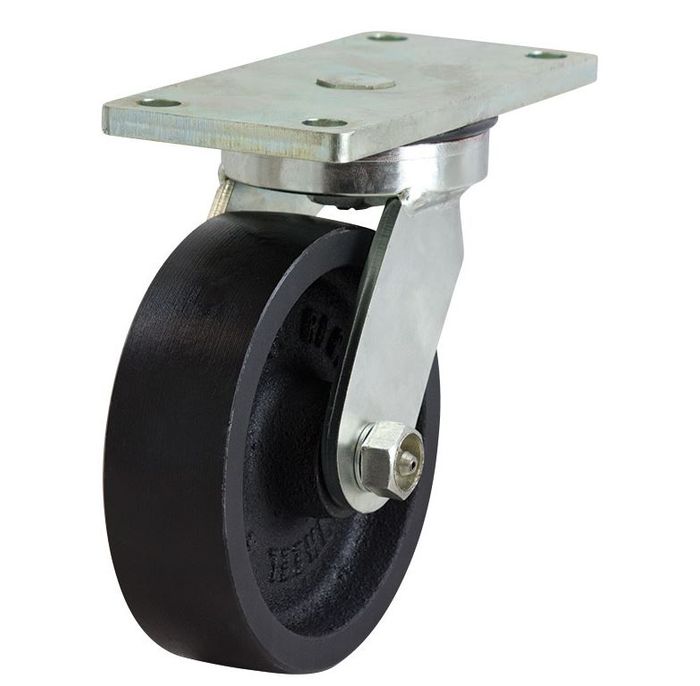

Richmond - 125mm Cast Iron Wheel

380Kg Capacity Castor Swivel
Stock Code:
S533CI
$333.48 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

125mm Cast Iron Wheel 380Kg Capacity Castor (S533CI)

The S533CI by Richmond Wheel and Castor Co. is a swivel frame castor and is fitted with a cast iron wheel. This swivel castor is one of our heavy duty welded series range and has a top load capacity of 380kg. The S533CI uses plain bearings for wheel rotation. This castors swivel frame allows for full 360° swivel rotation. The overall cast iron wheel diameter is 125mm, the wheel width is 38mm and you can order separately (Part Number: Ci532).

Product Specifications

Wheel Diameter (mm)125
Frame TypeSwivel
Wheel Width (mm)38
Wheel TypeCast Iron
Wheel CodeCi532
Wheel Bearing TypePlain Bore
Castor Height (mm)159
Swivel Radius (mm)102
Maximum Load Capacity (kg)380
Recommended Load Capacity (kg)280

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Material:
    Cast Iron
  • Width:
    38 mm
  • Brand:
    RICHMOND
  • Chain Series:
    < 400 Kg - Heavy Duty Welded Series
  • Type:
    Swivel - Plate
  • Size:
    380 Kg
  • Diameter Outside:
    125 mm (5 inch)
  • Style:
    Zinc Plated
