Sutton - NPT 1 1/2 x 11.5 Hand Tap - Bottoming

Tungsten Chrome
Stock Code:
SUT-M2454826
$484.84 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

Product Description

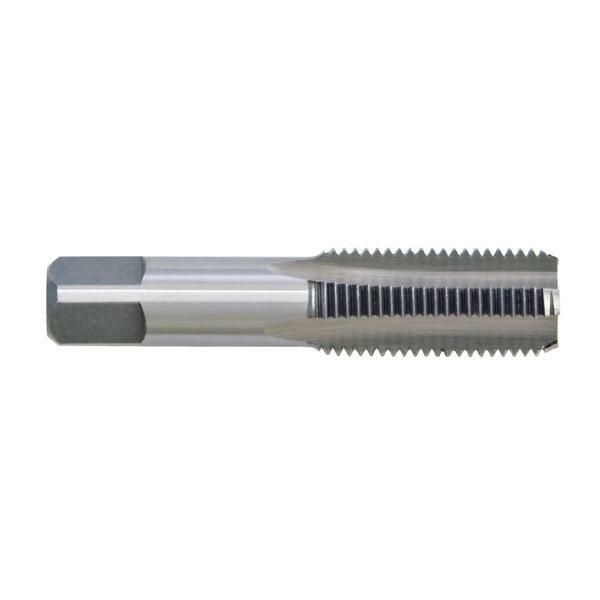

Sutton M2454826 NPT 1 1/2 x 11.5 Hand Tap - Bottoming - Tungsten Chrome

  • Sutton Tools Carbon Hand Taps are ideal for routine maintenance, repair work and for rethreading where high accuracy and tolerance thread is not critical.

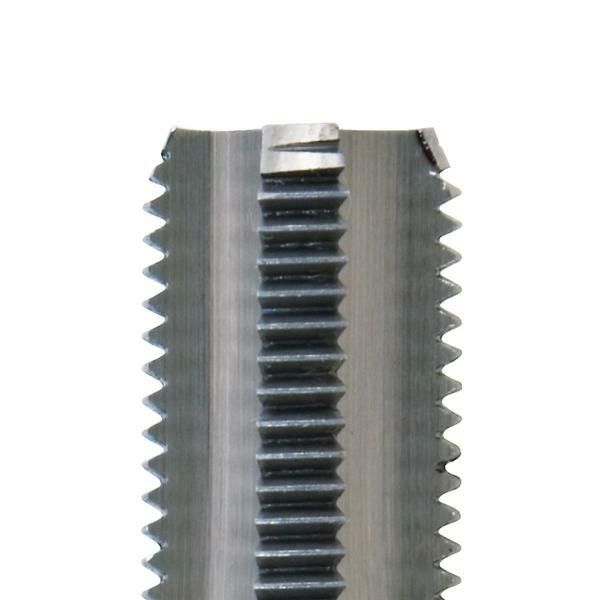

  • Straight flutes are designed for tapping into materials where chips break-up readily and present no disposal problems, particularly in through-hole tapping.
  • Straight flute taps are only suitable for hand operations, tapping up to 1-1/2 x diameter.

Features

  • Straight Flutes suitable for through hole tapping up to 1-1/2 x diameter
  • Bottoming lead: used after a taper lead tap and are suitable for creating threads close to the bottom of blind holes
  • Square shank for use with a suitable tap wrench to drive the tap
  • Made from tungsten chrome alloy
  • Bright finish for general purpose applications, non-ferrous metals & plastics

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Tungsten Chrome Alloy (TCA)
  • Finish: Bright
  • Max Cut Depth: 1.5xD
  • Shank Form: Square Shank
  • X: als
  • Type: Taper
  • Thread Form: NPT
  • Lead: Taper
  • Diameter (inch) 1 1/2
  • TPI 11.5
  • Drill Size (mm 44

Click here for catalogue information
