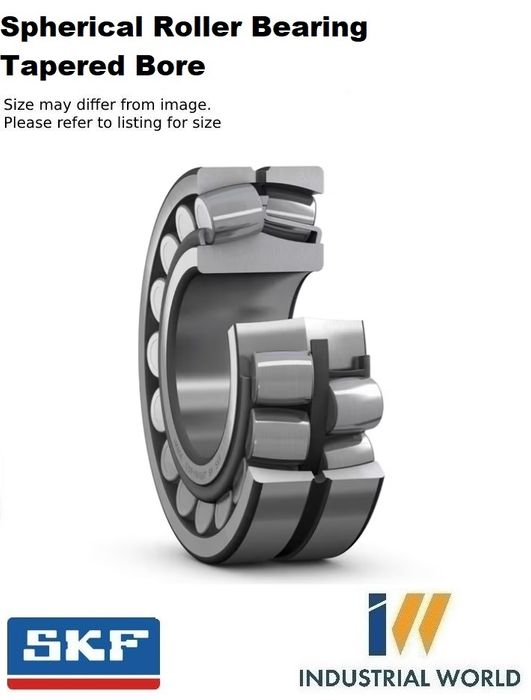

SKF - Spherical Roller Bearing Tapered Bore

60 x 110 x 28

Stock Code:

22212EK_SKF

$122.06 incl GST

Stock Locations

Ballarat:

6 In Stock
Shepparton:

Special Order

Make an Enquiry

Add to Favourites

Description

22212 EK

SKF Spherical roller bearing with tapered bore and relubrication features

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.

Accommodate misalignment
High load carrying capacity
Relubrication features
Low friction and long service life
Increased wear resistance

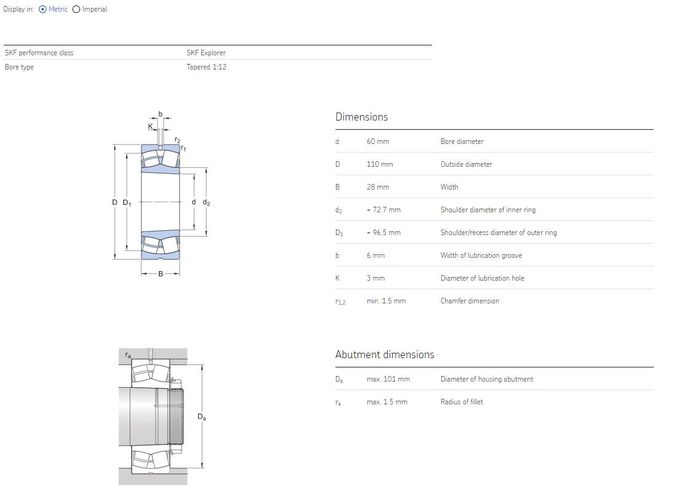

Dimensions

Bore diameter	2.362 in
Outside diameter	4.331 in
Width	1.102 in

Properties

Number of rows	2
Locating feature, bearing outer ring	Without
Bore type	Tapered 1:12
Cage	Sheet metal
Radial internal clearance	CN
Sealing	Without
Lubricant	None
Relubrication feature	With

Performance

Basic dynamic load rating	35 745 lbf
Basic static load rating	37 318 lbf
Reference speed	5 600 r/min
Limiting speed	7 500 r/min
SKF performance class	SKF Explorer
