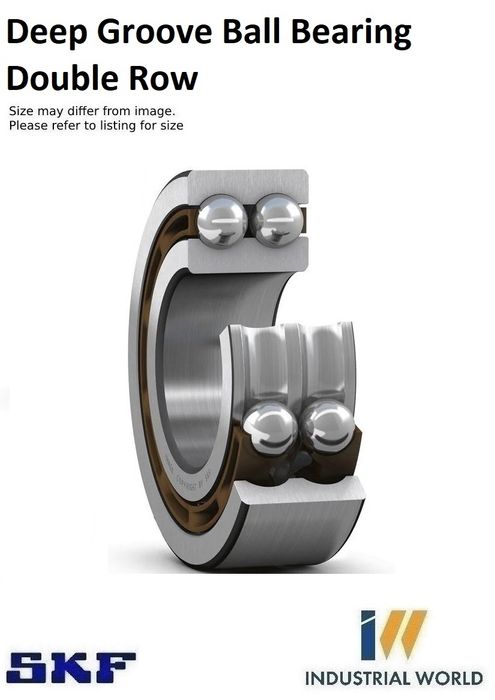

SKF - Double Row Deep Groove Ball Bearing

30 x 62 x 20 Polymer Cage
Stock Code:
4206-A-TN9_SKF
$113.27 incl GST

Stock Locations

  • Ballarat:
    2 In Stock
  • Shepparton:
    Special Order

Description

4206-A-TN9

SKF - Double Row Deep Groove Ball Bearing

30 x 62 x 20 Polymer Cage

Double row deep groove ball bearings correspond, in their design and operation, to a pair of single row deep groove ball bearings. They are robust in operation, requiring little maintenance, can operate at high speeds and accommodate radial and axial loads in both directions. They are slightly wider than single row bearings of the same bore and outside diameter but have a considerably higher load carrying capacity.

  • Versatile and robust design
  • High-speed capability
  • Accommodate high axial and radial loads in both directions
  • Require little maintenance

Dimensions

Bore diameter30 mm
Outside diameter62 mm
Width20 mm

Properties

Bore typeCylindrical
CageNon-metallic
CoatingWithout
Filling slotsWithout
Locating feature, bearing outer ringNone
LubricantNone
Matched arrangementNo
Material, bearingBearing steel
Number of rows2
Radial internal clearanceCN
Relubrication featureWithout
SealingWithout

Performance

Basic dynamic load rating26 kN
Basic static load rating20.8 kN
Limiting speed9 500 r/min
Reference speed17 000 r/min

Click here for product information

Click here for product table

See the attached technical specification (PDF File) for details

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    30 mm
  • Material:
    Chrome steel
  • Width:
    20 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Chain Series:
    Standard Clearance
  • Type:
    Open
  • Diameter Outside:
    62 mm
  • Style:
    Polymer Cage
