Imperial Circlip Plier

12-25mm 45DG Tip
Stock Code:
IR-4745
$75.90 incl GST

Stock Locations

  • Ballarat:
    1 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

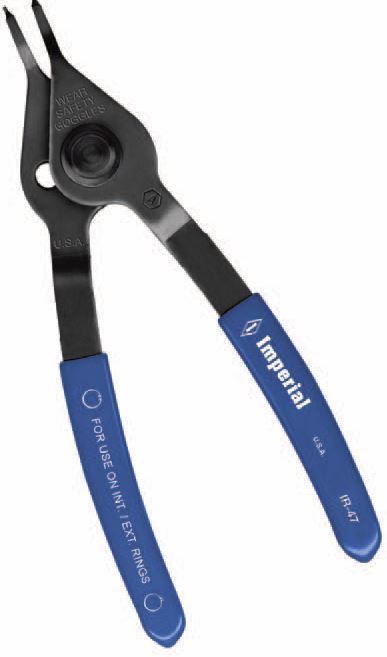

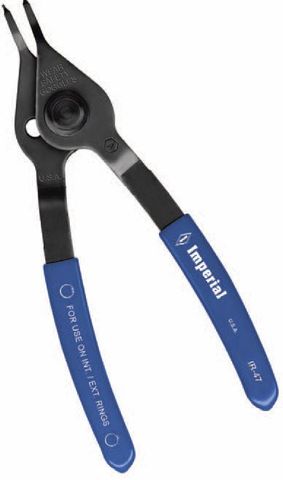

Imperial Convertible Ring Pliers for 1/4" to 3-1/2" IR-4745

IR-4745 Standard Convertible 45° Ring Pliers

Product Specifications

  • Simply move the screw to the other hole and finger-tighten to convert from internal to external (or reverse)
  • Internal (Housing) 3/8 in. - 3 in. (10 mm - 76 mm)
  • External (Shaft) 1/4 in. - 3-1/2 in. (6.5 mm - 89 mm)
  • High Carbon, Hardened steel for durability and strength
  • Black oxide finish resists rust and corrosion
  • Available in straight, 45° and 90° offsets
  • 0.038” to 0.090" tip diameters
  • Conforms to ASME Standard B107.500-2010
  • Cushion Grip handles
  • Impact-resistant case

See attached PDF (Imperial Circlip Pliers Product Table)

Part No. DescriptionTip Dia (in.)Tip AngleNom. Length
(in.)
IR-38Standard Convertible
(NSN 5120-00-089-0874)		.0380°6
IR-3845Standard Convertible
(NSN 5120-00-930-9186)		.03845°6
IR-3890Standard Convertible.03890°6
IR-47Standard Convertible.0470°6
IR-4745Standard Convertible.04745°6
IR-4790Standard Convertible.04790°6
IR-70Standard Convertible.0700°7-1/4
IR-7045Standard Convertible.07045°7-1/4
IR-7090Standard Convertible.07090°7-1/4
IR-90Standard Convertible.0900°9-1/4
IR-9045Standard Convertible.09045°9-1/4
IR-9090Standard Convertible.09090°9-1/4
