SKF Hook Spanner for Housings Suit: KM22

Stock Code:

HN22/SNL_SKF

$112.64 incl GST

Stock Locations

Ballarat:

Special Order
Shepparton:

Special Order

1 On Order

Make an Enquiry

Add to Favourites

Description

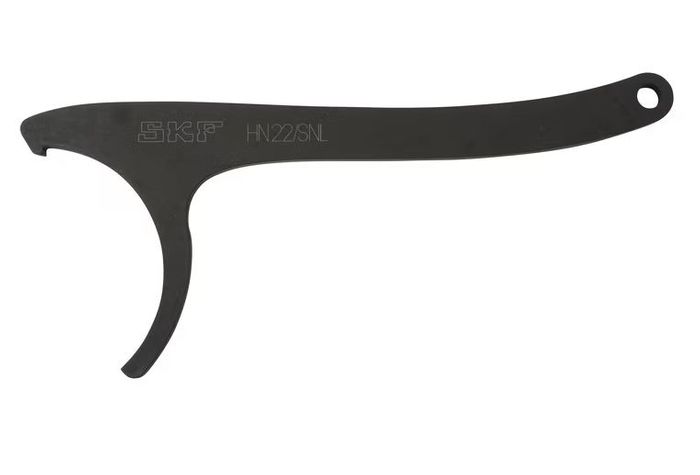

HN 22/SNL

SKF Hook spanner for SNL housings, size 22

The unique protected design of this SKF Hook spanner, allows it to tighten and loosen lock nuts whilst these are inside SKF split pillow block housings (SNL). Alternatively it can be used as regular hook spanner. They are used to secure and adjust bearings on tapered journals, adapter sleeves and withdrawal sleeves. The SKF hook spanner HN 22/SNL, is designed for nuts with an outer diameter of 145 mm. In particular for lock nuts of series KM 22, KMFE 22, KMT 22, N 024, AN 22 and M100x2 (DIN 1804).

Unique design SKF Hook spanner, allows it to tighten and loosen lock nuts whilst these are inside SKF split pillow block housings (SNL)
Can be used as regular hook spanner
Will fit in tight spaces
Long smooth handle to generate a high torque
Drilled hole for easy hanging storage
Laser-engraved designation for easy identification
They fit on a variety of locknuts with outer diameter of 145 mm

Dimensions

Outer diameter lock nut	145 mm
Working length	375 mm
Thickness	12 mm
Length	372 mm
Product weight	1.26 kg

Properties

Allows bearing mounting	No
Fits on lock nuts inside SKF split pillow block housings (SNL)	Yes
Material	Medium carbon steel, hardened and tempered
Material handle	Steel
Coating	Black phosphated
Colour	Black metallic
