SKF Hook Spanner for Housings Suit: KM09

Stock Code:

HN9/SNL_SKF

$33.91 incl GST

Stock Locations

Ballarat:

1 In Stock
Shepparton:

Special Order

Make an Enquiry

Add to Favourites

Description

HN 9/SNL

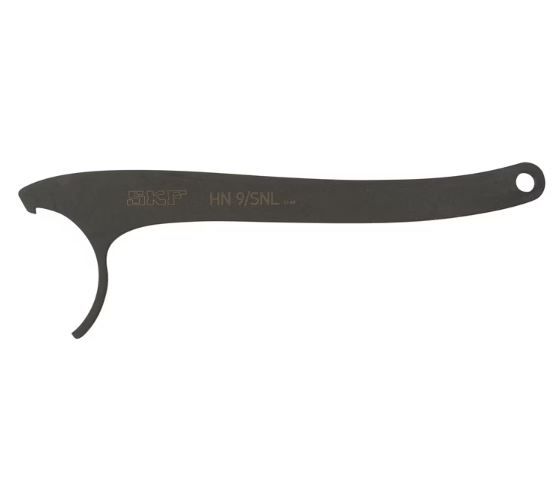

SKF Hook spanner for SNL housings, size 9

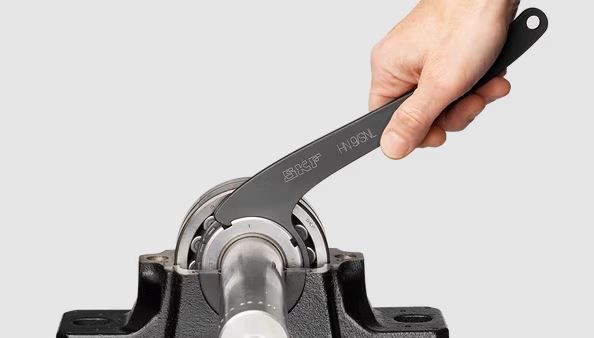

The unique protected design of this SKF Hook spanner, allows it to tighten and loosen lock nuts whilst these are inside SKF split pillow block housings (SNL). Alternatively it can be used as regular hook spanner. They are used to secure and adjust bearings on tapered journals, adapter sleeves and withdrawal sleeves. The SKF hook spanner HN 9/SNL, is designed for nuts with an outer diameter of 65 mm. In particular for lock nuts of series KM 9, KMK 9, KMFE 9, KMT 8, and N 09.

Unique design SKF Hook spanner, allows it to tighten and loosen lock nuts whilst these are inside SKF split pillow block housings (SNL)
Can be used as regular hook spanner
Will fit in tight spaces
Long smooth handle to generate a high torque
Drilled hole for easy hanging storage
Laser-engraved designation for easy identification
They fit on a variety of locknuts with outer diameter of 65 mm

Dimensions

Outer diameter lock nut	65 mm
Working length	245 mm
Thickness	7 mm
Length	247 mm
Product weight	0.3 kg

Properties

Allows bearing mounting	Yes, angle method or with clearance reduction measurement
Fits on lock nuts inside SKF split pillow block housings (SNL)	Yes
Material	Medium carbon steel, hardened and tempered
Material handle	Steel
Coating	Black phosphated
Colour	Black metallic
