SKF Adjustable Hook Spanner HNA Series

KM05-08 35 mm -60 mm

Stock Code:

HNA14-24_SKF

$114.17 incl GST

Stock Locations

Ballarat:

1 In Stock
Shepparton:

Special Order

Make an Enquiry

Add to Favourites

Description

HNA 14-24

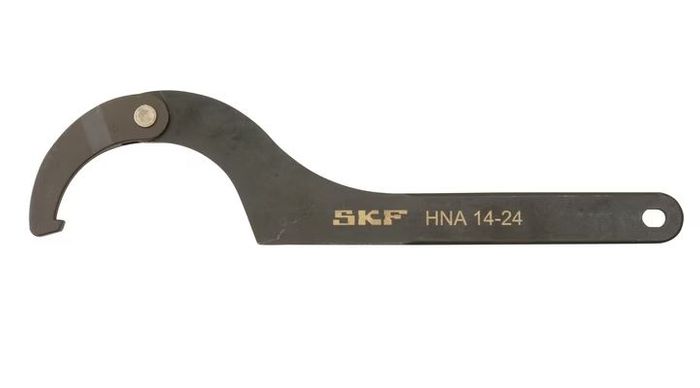

SKF Adjustable hook spanner, size 14-24

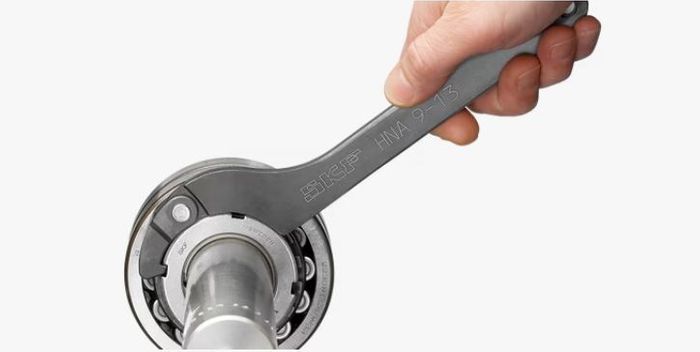

The SKF Adjustable hook spanner, size 14 - 24, has a pivoting hook that allows tightening and loosening of a variety of lock nuts. They are used to secure and adjust bearings on tapered journals, adapter sleeves and withdrawal sleeves. They are an economic solution as they fit on a variety of lock nuts with outer diameters 90 - 155 mm. To be more specific for locknuts: KM 14 - 24, KMK 14 - 24, KMFE 14 - 24, KMT 13 - 24, N 14 and M62x1,5 - M110x2 (DIN 1804)

Designed with a long handle and thickened pivot point they can generate high torques
Grip with rounded edges for more comfort
Drilled hole for easy storage
Laser-engraved designation for easy identification
Minimise risk of shaft and nut damage
Economic solution as it allows tightening and loosening a variety of luck nuts with outer diameters 90 - 155 mm.

Dimensions

Outer diameter lock nut range	90 - 155 mm
Working length	275 mm
Thickness	15 mm
Length	335 mm
Product weight	0.6 kg

Properties

Allows bearing mounting	No
Fits on lock nuts inside SKF split pillow block housings (SNL)	No
Material	Alloy engineering steel, hardened and tempered
Material handle	Steel
Coating	Black oxide
Colour	Metallic Black
