SKF Adjustable Hook Spanner HNA Series

KM09-13 60mm-90mm

Stock Code:

HNA5-8_SKF

$60.61 incl GST

Stock Locations

Ballarat:

2 In Stock
Shepparton:

1 In Stock

Make an Enquiry

Add to Favourites

Description

HNA 5-8

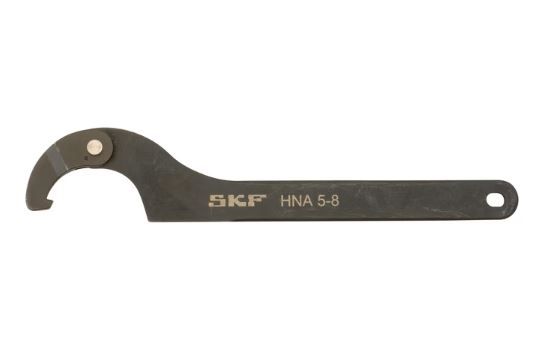

SKF Adjustable hook spanner, size 5-8

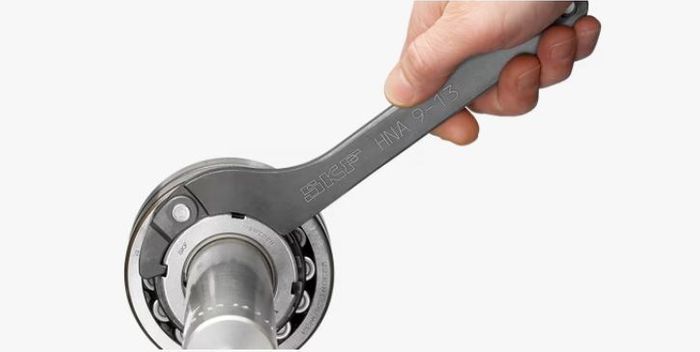

The SKF Adjustable hook spanner, size 5 - 8 , has a pivoting hook that allows tightening and loosening of a variety of lock nuts. They are used to secure and adjust bearings on tapered journals, adapter sleeves and withdrawal sleeves. They are an economic solution as they fit on a variety of lock nuts with outer diameters 35 - 60 mm. To be more specific for locknuts: KM 5 - 8 , KMK 5 - 8 , KMFE 5 - 8 , KMT 3 - 7 , N 05 - 08 and M20x1,5 - M38x1,5 (DIN 1804)

Designed with a long handle and thickened pivot point they can generate high torques
Grip with rounded edges for more comfort
Drilled hole for easy storage
Laser-engraved designation for easy identification
Minimise risk of shaft and nut damage
Economic solution as it allows tightening and loosening a variety of luck nuts with outer diameters 35 - 60 mm.

Dimensions

Outer diameter lock nut range	35 - 60 mm
Working length	180 mm
Thickness	11 mm
Length	210 mm
Product weight	0.17 kg

Properties

Allows bearing mounting	Yes, angle method or with clearance reduction measurement
Fits on lock nuts inside SKF split pillow block housings (SNL)	No
Material	Alloy engineering steel, hardened and tempered
Material handle	Steel
Coating	Black oxide
Colour	Metallic Black
