SKF - Cordless 20V 400g Grease Gun inc Meter

Lithium-ion 240V
Stock Code:
TLGB20A.AU__SKF
$944.80 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

TLGB 20

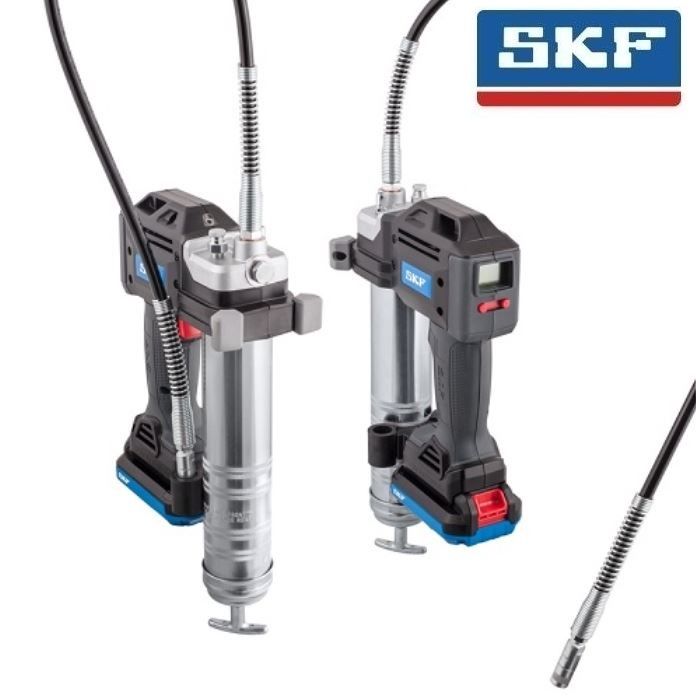

SKF Battery Driven Grease Gun TLGB 20

Developed for maximum efficiency, the SKF Battery Driven Grease Gun TLGB 20 includes an integrated grease meter to help prevent over- and under-lubrication. This unique tool features a durable, ergonomic design with a three-point stand for operator comfort and convenience and a lithium-ion battery for longer life. The tool’s display indicates battery charge level, amount of grease dispensed, pump/motor speed and blocked lubrication points. This versatile grease gun provides two flow rates – low and high – and can dispense up to 15 grease cartridges per battery charge. The TLGB 20 can deliver pressures up to 700 bar (10000 psi) and features a built-in light to illuminate the work area.

  • Integrated grease meter tracks dispensed grease
  • Battery charge display indicates lithium battery charge level
  • LED light illuminates work area to help locate grease fittings in dimly lit environments

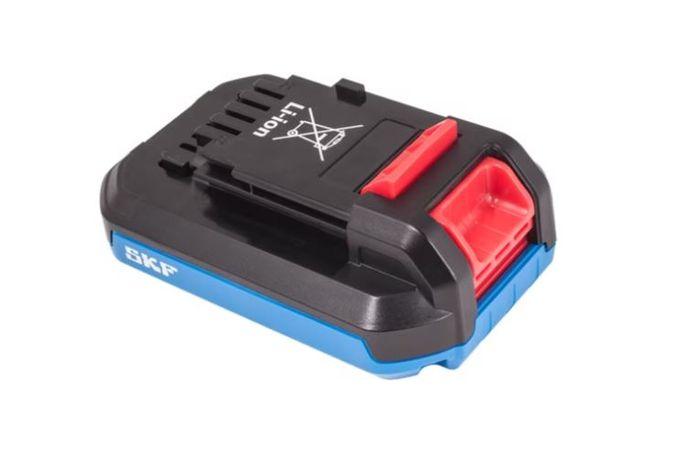

  • Lithium-ion battery dispenses up to 15 grease cartridges per charge and maintains stable energy output
  • Filler nipple facilitates clean and simple filling from drums using filler pumps
  • Lightweight, ergonomic design with optimized balance for operator comfort

Dimensions

Length of hose900 mm
Total weight (incl. case)5.7 kg
Hose length900 mm
Case dimensions (l x h x w)590 x 110 x 370 mm

Properties

Battery20V Li-ion battery
Battery charger200-240V, 50-60 Hz
Built-in lightYes
Case dimensions (l x w x h)590 x 110 x 370 mm
Integrated grease metreYes
Maximum NLGI class of lubricant2
Number of available pump speeds2
Grease output at 70 bar (1000 psi) - Low speed100 ml/min
Grease output at 70 bar (1000 psi) - High speed160 ml/min
Cartridges per battery charge15
DisplayYes
Built-in lightYes
Integrated grease metreYes
Battery20V Li-ion battery
Battery capacity1 500 A·h
Battery charger200-240V, 50-60 Hz
Operating temperature range-20  –  50 °C
Content1x Grease gun;1x charger;1x instructions for use;1x carrying case

Performance

Battery capacity1 500 mA·h
Grease output at 70 bar (high speed)160 ml/min
Grease output at 70 bar (low speed)100 ml/min
Maximum peak pressure700 bar
Maximum pressure400 bar
Maximum pressure (Mpa)40 MPa
Maximum pressure400 bar
Maximum pressure40 MPa
Maximum peak pressure700 bar

Click here for battery driven grease gun information

Product technical data sheet attached
