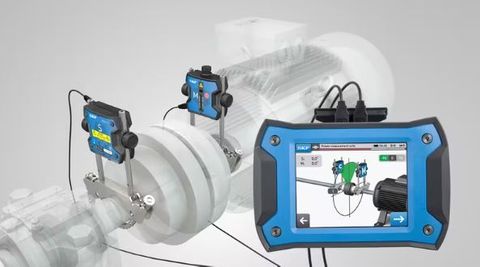

Shaft Alignment Tool upto 4 mtr 90 Deg Rotation

Horoizontal only - touch screen

Stock Code:

TKSA41_SKF

$9,811.33 incl GST

Stock Locations

Ballarat:

Special Order
Shepparton:

Special Order

1 On Order

Make an Enquiry

Add to Favourites

Description

TKSA 41

SKF Shaft alignment tool

The TKSA 41 has two wireless measurement units, large sized detectors and powerful lasers. The instrument performs precise measurements in even most challenging industrial environments. The easy to use display device helps users to quickly check and correct shaft alignments and improve the machine performance and reliability.

Intuitive touch display device for usage in industrial environments
Wireless measuring units allow easy handling and more measurement flexibility
Measurement positions can be chosen freely and only 90° shaft rotation is required.
Live view supports all alignment measurements and corrections
Automatic alignment reports are saved in the machine library and can be customised with notes, pictures and QR code. All reports can be exported as pdf.
The built-in camera allows pictures to be taken for reports. Machine identification with automatic QR code identification and machine pictures in the library.

Dimensions

Maximum coupling height	105 mm
Maximum coupling height with extension	195 mm
Total weight	5.33 k

Properties

Alignment methods	3 position measurement 9 -12 -3;Automatic measurement;Free measurement (only 90° shaft rotation needed)
Recommended applications	Horizontal shafts;Soft foot
Live correction values	Vertical and horizontal
Special features	Machine library;Built-in photo camera;QR code reading;Screen orientation flip;Automatic .pdf report
Sensors	29 mm CCD;Inclinometer ±0.5°
Communications	Bluetooth 4.0 LE or wired with USB cables
Measurement distance	0.07 to 4 m
Measuring error (percent)	0.5 %
Material	Display unit: High impact PC/ABS plastic with over mould; Measurement units: glassfiber filled PC
Battery	Measuring units: rechargeable 2000 mAh LiPo batteries;Display unit: rechargeable 5000 LiPo battery
Battery life	8 h
Display	5.6" colour resistive touchscreen LCD display
Software update	Via USB stick
Laser type	Red line
Mounting	2x V-brackets (width 21 mm) with chains
Shaft diameter	20 to 150 mm
Shaft diameter with extension	Up to 300 mm with optional extension chains (not included)
Power adapter	Input: 100V-240V, 50/60Hz AC with country adpaters for EU, US, UK, AUS included;Output: DC 12V 3A
Operating temperature range	0 to 45 °C
Degree of protection (IP)	IP 54
Certifications	Calibration certificate (2 years validity)
Part of a kit	no, but also available as TKSA 41/KIT360
Case dimensions (l x h x w)	530 x 110 x 360 mm (20.9 x 4.3 x 14.2 in.)
Content	Set of 2 Measuring units (M and S);Display unit;Set of 2 shaft brackets with chains 400 mm (15.8 in) and threaded rods 150 mm (5.9 in);Set of 4 threaded extension rods 90
