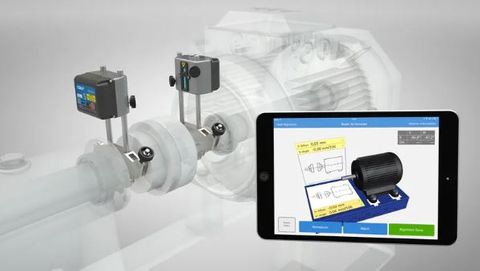

Shaft Alignment Tool upto 5 mtr 40 Deg Rotation

Horoizontal & Vertial - BYO Phone/Tablet

Stock Code:

TKSA51_SKF

$11,091.08 incl GST

$10,450.00 incl GST

Stock Locations

Ballarat:

Special Order
Shepparton:

Special Order

Make an Enquiry

Add to Favourites

Description

TKSA 51

SKF Shaft alignment tool

The TKSA 51 provides high measurement flexibility and performance, suitable for entry-level to expert alignment jobs. Designed to work with the SKF shaft alignment apps on a tablet or smart phone, this intuitive tool is easy to use and requires no special training. The included accessories enable use of the TKSA 51 for a wide range of alignment applications with horizontal and vertical shafts, such as motors, drives, fans, pumps, gearboxes and more. The apps include tutorial videos to show operators how to perform accurate measurements.

Measurements can start at any angle and require a total minimal rotation of only 40 degrees
Alignment reports are generated automatically and can be customised
Reports can be exported as PDF files and shared with other mobile apps
A range of components are included, such as magnetic mounting brackets, extension rods and chains
3-D live view enables 3-D rotation of the virtual motor to correspond with the actual machine position
Measurement values are averaged over time to provide accuracy in presence of vibration or other external disturbances
Is supplied in a sturdy SKF carrying case
Extensive range of accessories is available

Dimensions

Maximum coupling height	45 mm
Maximum coupling height with extension	170 mm
Total weight	3.3 kg

Properties

Alignment methods	3 position measurement 9 -12 -3;Automatic measurement;Free measurement (only 40° shaft rotation needed)
Recommended applications	Horizontal shafts;Vertical shafts;Soft foot
Live correction values	Vertical and horizontal
Special features	Machine library;Pictures in reports;QR code reading;Target values;Disturbance compensation;Free 3D machine view;Screen rotation on tablets;Automatic .pdf report
Sensors	20 mm PSD;Inclinometer ±0.1°
Communications	Bluetooth 4.0 LE
Measurement distance	0.07 to 5 m
Measuring error (percent)	1 %
Material	Measurement units: anodized aluminum front and PC/ABS plastic back cover
Battery	Measuring units: rechargable 2000mAh Li-ion battery
Battery life	10 h
Display	None, Smartphone or tablet needed
Operating system	min. Android 9; min. Apple iOS 9
Software update	Via Apple AppStore and Google Play Store
Suitable operating devices	Android Tablet or Smartphone with min. Android 9;Apple iPad, iPhone with min. iOS 9
Laser type	Red line
Mounting	2x V-brackets (width 15 mm) with chains and magnets
Shaft diameter	20 to 150 mm
Shaft diameter with extension	Up to 450 mm with extension chains (included)
Power adapter	Charging via micro USB 2.0 port (5V);Micro USB to USB charging cable included;Compatible with standard 5V USB chargers (not included)
Operating temperature range	0 to 45 °C
Degree of protection (IP)	IP 54
Certifications	Calibration certificate (2 years validity)
Part of a kit	no, but also available as TKSA 51/KIT360
Case dimensions (l x h x w)	360 x 110 x 260 mm (14.2 x 4.3 x 10.2 in.)
Content	Set of 2 Measuring units (M and S);Set of 2 shaft brackets with chains 480 mm (18.9 in) and threaded rods 80 mm (3.2 in) and magnets;Set of 4 threaded extension rods 12
