SKF Ultrasonic Leak Detector TKSU 10

(+83 dB) compressed air or vaccum detection
Stock Code:
TKSU10_SKF
$3,631.39 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

TKSU 10

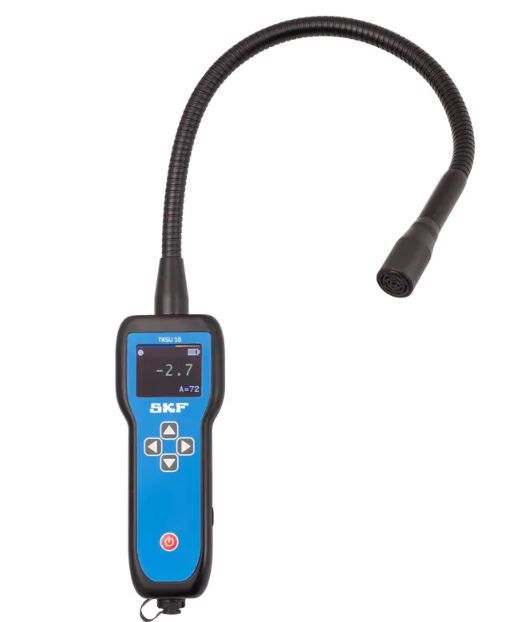

SKF Ultrasonic Leak Detector TKSU 10

The SKF TKSU 10 is an ultrasonic leak detector that helps users to quickly find leakages in compressed air or vacuum systems. Leakages increase the load on the equipment and result in higher operation and maintenance costs. The TKSU 10 is very simple to use and helps users to easily find leaks from a distance, even in noisy industrial environments, via its ultrasound measurement sensor. The instrument features adjustable sensitivity and intuitive LED display gives guidance for superior leak detection results.The TKSU 10 is designed for use in all industries utilizing compressed air, and it is particularly recommended for paper and chemical industries, as well as workshops with air-driven power tools.

  • Easy and intuitive to use. No training required
  • Leak detection from a distance in noisy industrial environments
  • High quality neckband headset for usage with protective helmets included
  • Color LED display assists users in adjusting sensitivity settings and shows measurement values
  • Independently adjustable sensor sensitivity and headset volume

Properties

Recommended applicationsDetection of leaks in compressed air systems, pneumatics brake systems, vacuum systems, pressurized gas storage, and steam traps
Special featuresGraphical or default streaming screen, Historical values, Amplification guidance, Continuous use mode, Volume control, Battery level, Auto switch off
Measurement methodPiezoelectric crystal
Measurement frequency35 to 42 kHz
Measurement range-6 to 99,9 dBµV, reference 0 dB = 1 µV
Signal amplification+30 to +102 in steps of 6 dB
Display160x128 pixels Colour OLED
Resolution0.1
Sound pressure level (max)+83 dB with supplied headset
Headset impedance230 â„¦
Headset connectorStereo jack connector of 6,35 mm
Headset weight255 g
Volume adjustment steps5
Battery2 x LR6, AA alkaline batteries
Battery life7
Auto switch offContinues, 10 min, off
Power adapterNot included but provided with mini-USB connection for continuous use
Instrument dimensions158 × 59 × 39 mm
Instrument weight350 g
Housing materialABS plastic
ColourBlack/Blue
Degree of protection (IP)IP 42
Operating temperature range-10.0  –  50.0 °C
Recommended storage temperature-30.0  –  60.0 °C
Relative humidity10 to 90%, non-condensing
Case dimensions (l x h x w)530 × 110 × 360 mm

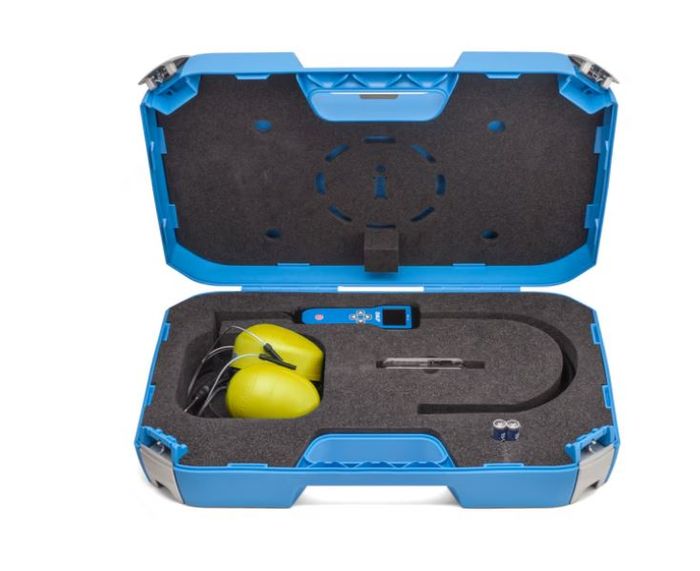

Content
Instrument
Peltor HQ neckband headset
Sensor
USB charging cable
Screwdriver

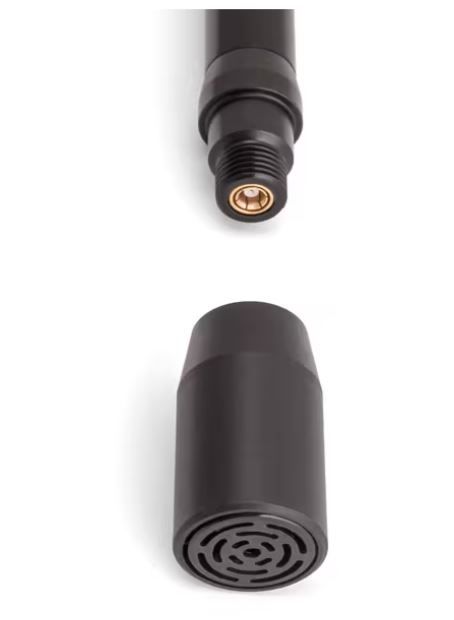

Rubber nozzle for the sensor
Instructions for Use MP5480
2x Battery AA
Carrying case, size C
Total product weight3.38 kg

Logistics

Product net weight3.13 kg
eClass code23-05-19-01
UNSPSC code41112202
