SKF - Cordless 20V 400g Grease Gun inc Meter

Lithium-ion 240V Includes 2 Batteries

Stock Code:

TLGB20AB.AU_SKF

$1,124.11 incl GST

Stock Locations

Ballarat:

Special Order
Shepparton:

Special Order

Make an Enquiry

Add to Favourites

Description

TLGB 20

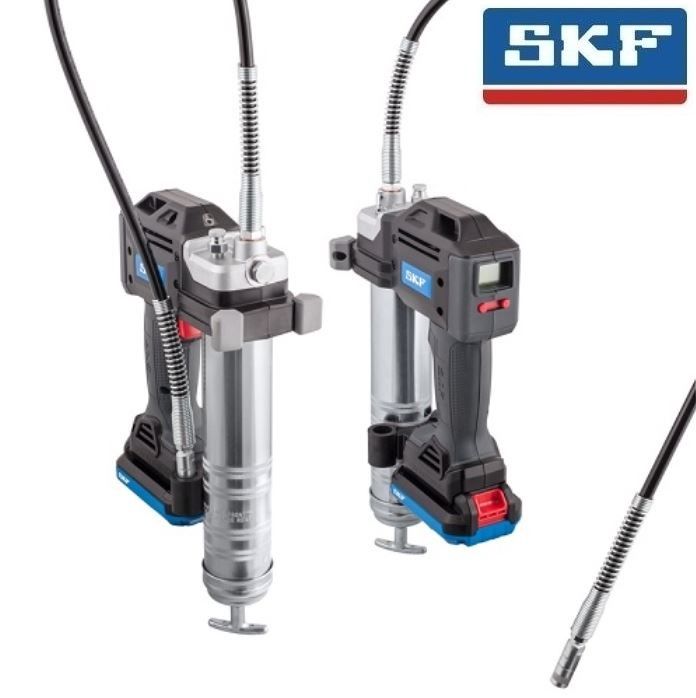

SKF Battery Driven Grease Gun TLGB 20 (Plus Second Battery)

Developed for maximum efficiency, the SKF Battery Driven Grease Gun TLGB 20 includes an integrated grease meter to help prevent over- and under-lubrication. This unique tool features a durable, ergonomic design with a three-point stand for operator comfort and convenience and a lithium-ion battery for longer life. The tool’s display indicates battery charge level, amount of grease dispensed, pump/motor speed and blocked lubrication points. This versatile grease gun provides two flow rates – low and high – and can dispense up to 15 grease cartridges per battery charge. The TLGB 20 can deliver pressures up to 700 bar (10000 psi) and features a built-in light to illuminate the work area.

Integrated grease meter tracks dispensed grease

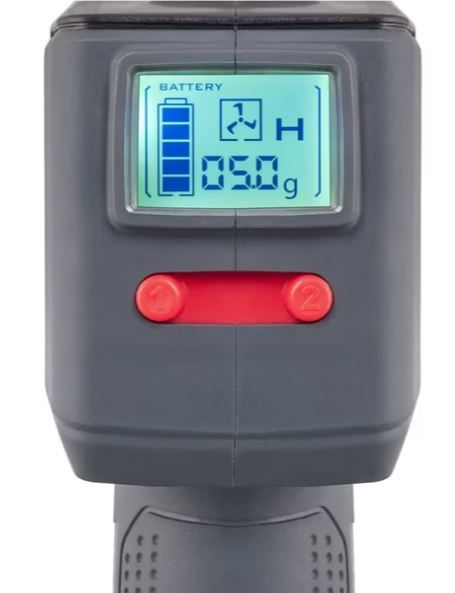

Battery charge display indicates lithium battery charge level
LED light illuminates work area to help locate grease fittings in dimly lit environments
Lithium-ion battery dispenses up to 15 grease cartridges per charge and maintains stable energy output
Filler nipple facilitates clean and simple filling from drums using filler pumps
Lightweight, ergonomic design with optimized balance for operator comfort

Dimensions

Length of hose	900 mm
Total weight (incl. case)	5.7 kg
Hose length	900 mm
Case dimensions (l x h x w)	590 x 110 x 370 mm

Properties

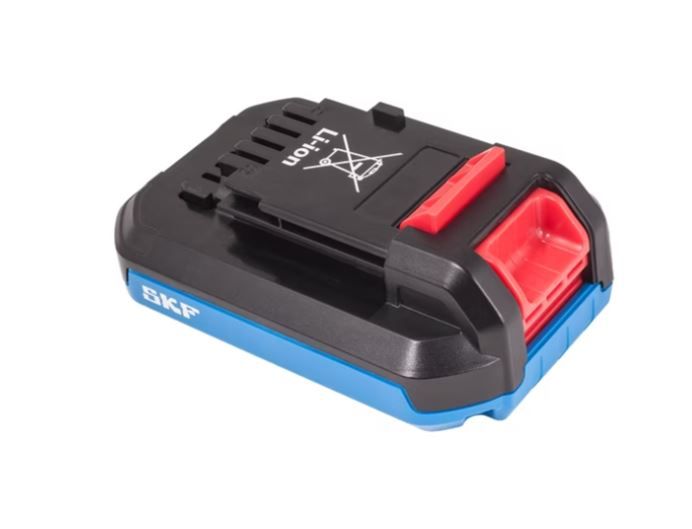

Battery	20V Li-ion battery

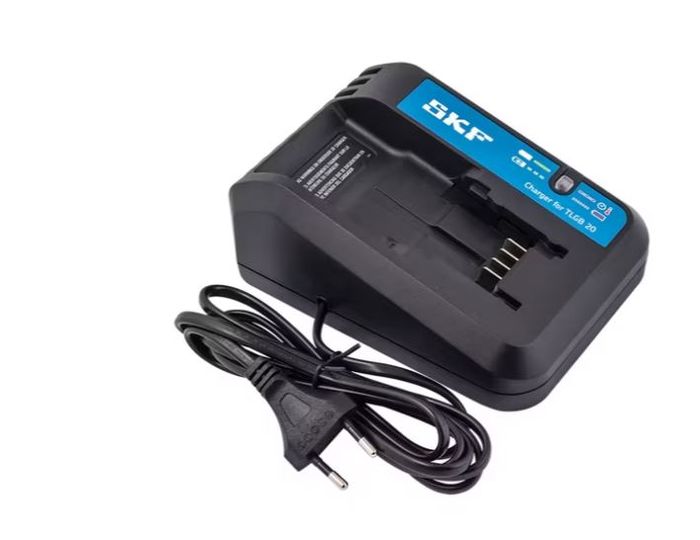

Battery charger	200-240V, 50-60 Hz
Built-in light	Yes
Case dimensions (l x w x h)	590 x 110 x 370 mm
Integrated grease metre	Yes
Maximum NLGI class of lubricant	2
Number of available pump speeds	2
Grease output at 70 bar (1000 psi) - Low speed	100 ml/min
Grease output at 70 bar (1000 psi) - High speed	160 ml/min
Cartridges per battery charge	15
Display	Yes
Built-in light	Yes
Integrated grease metre	Yes
Battery	20V Li-ion battery
Battery capacity	1 500 A·h
Battery charger	200-240V, 50-60 Hz
Operating temperature range	-20 – 50 °C
Content	1x Grease gun;1x charger;1x instructions for use;1x carrying case

Performance

Battery capacity	1 500 mA·h
Grease output at 70 bar (high speed)	160 ml/min
Grease output at 70 bar (low speed)	100 ml/min
Maximum peak pressure	700 bar
Maximum pressure	400 bar
Maximum pressure (Mpa)	40 MPa
Maximum pressure	400 bar
Maximum pressure	40 MPa
Maximum peak pressure	700 bar
