SKF - Combined Mounting & Dismounting Kit

Suit deep groove ball bearings 10-35 mm ID
Stock Code:
TMMK10-35_SKF
$2,147.70 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

TMMK 10-35

SKF Combined mouting and dismounting kit for deep groove ball bearings

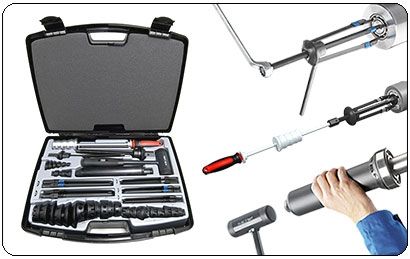

The SKF TMMK series is designed for the quick and precise mounting and dismounting of deep groove ball bearings from and in shafts, housings and blind housings. For mounting, a multi-purpose fitting tool is included which is suitable for mounting bearings as well as bushings, seal rings, belt pulleys and other similar products. The puller for dismounting grips inside the deep groove bearings raceway with especially designed claws.

  • For selected deep groove bearing the one kit to dismount and mount them
  • Allows dismounting bearings from all bearing arrangements
  • Easy to select and assemble puller
  • Dismounting force generation by hammer or spindle
  • Multi-purpose fitting tool included
  • Mounting force generation with a dead blow hammer for higher efficiency

Dimensions

Workpiece bore diameter
For mounting: 10 to 35 mm
For dismounting 10 to 85 mm
Workpiece depth (max)
Dismounting: with arms A1: 135 mm, A2: 135 mm, A3: 137 mm, A4: 162 mm, A5: 167 mm
Mounting: with Sleeve A: 221 mm, B: 221 mm
Total Arm length
Arm A1: 188 mm
Arm A2: 189 mm
Arm A3: 193 mm
Arm A4: 226 mm
Arm A5: 231 mm
Effective spindle length
Spindle S1: 214 mm
Spindle S2: 214 mm
Total spindle length
Spindle S1: 275 mm
Spindle S2: 288 mm
Spindle head, hexagon size
Spindle S1: 19 mm
Spindle S2: 24 mm
Sleeve outer lengths
A: 228 mm
B: 235 mm
Sleeve, outer diameter
A: 25 mm
B: 45 mm
Hammer length12.4016 in
Hammer width4.5276 in
Case dimensions (l x h x w)530 x 110 x 360 mm

Properties

Mounting force generationHammer
Suitable for workpiece mounting on a Cylindrical seating (straight shaft)Yes
Suitable for bearing mounting on a Tapered seating (conical shaft)Not recommended
Suitable for bearing mounting on a Sleeve (adapter or withdrawal)Not recommended
Suitable for workpiece mounting in a Blind arrangement (housing with shaft)Yes
Suitable for workpiece mounting in a HousingYes
Dismounting force generationMechanical spindle or Sliding hammer
Suitable for workpiece dismounting from a Cylindrical seating (straight shaft)Yes
Suitable for bearing dismounting from a Tapered seating (conical shaft)No
Suitable for bearing dismounting from a Sleeve (adapter or withdrawal sleeve)No
Suitable for workpiece dismounting from a Blind arrangement (housing with shaft)Yes
Suitable for workpiece dismounting from a HousingYes
Suitable for bearing type(s)
Mounting: All types
Dismounting SKF Deep Groove Ball Bearings (DGBB's)
Allowed temperature of the mounting object-54.0  –  198.0 °F
Number of arms5 sets of 3, named A1 to A5
Number of rings24
Models of rings2, named A and B
Number of sleeves2, named A and B
Total number of spindles in kit2
Spindle nose pieceNo
Hammer typeDead blow hammer
Hammer weight1.984 lb
HammerheadSturdy polyurethane (PU) preventing damage to the sleeve heads
Material
Rings: Impact resistant polyamide (PA)
Sleeve material: Glassfiber filled polyamide (PA)
Hammer: Steel,PU
Puller: Medium carbon steels and alloy engineering steels, black phosphated, hardened and tempered
Colour
Hammer: Black/Blue
Puller: Black metallic
Rings: Black
Sleeves: Black
Content
5x sets of 3 arms, size A1 to A5
2x spindles, size S1 and S2
1x Spindle holder
1x Sliding hammer
24x Impact rings sizes A and B
Impact sleeves sizes A and B
1x Dead blow hammer
6x Spindle support rings
1x printed Instruction for Use (language free)
1x Carrying case (size C)
Total product weight16.755 lb

Logistics

Product net weight7.64 kg
eClass code23-05-19-01
UNSPSC code27111712
