SKF Jaw Puller - 3 Leg 34 kN

40-230 mm width x 210 mm deepth

Stock Code:

TMMP3X230_SKF

$504.38 incl GST

Stock Locations

Ballarat:

1 In Stock
Shepparton:

Special Order

Make an Enquiry

Add to Favourites

Description

TMMP 3X230

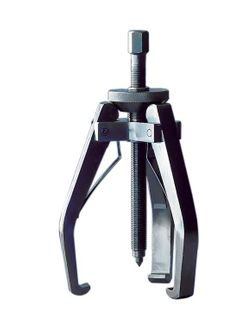

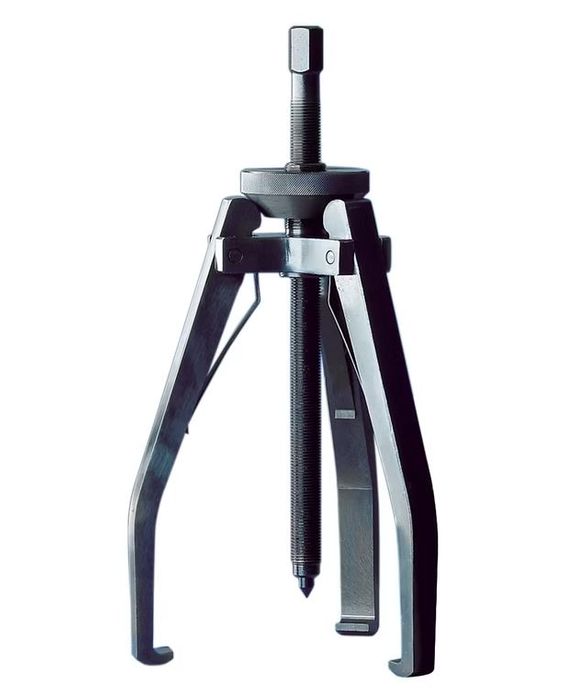

SKF Standard Jaw Puller TMMP 3X230

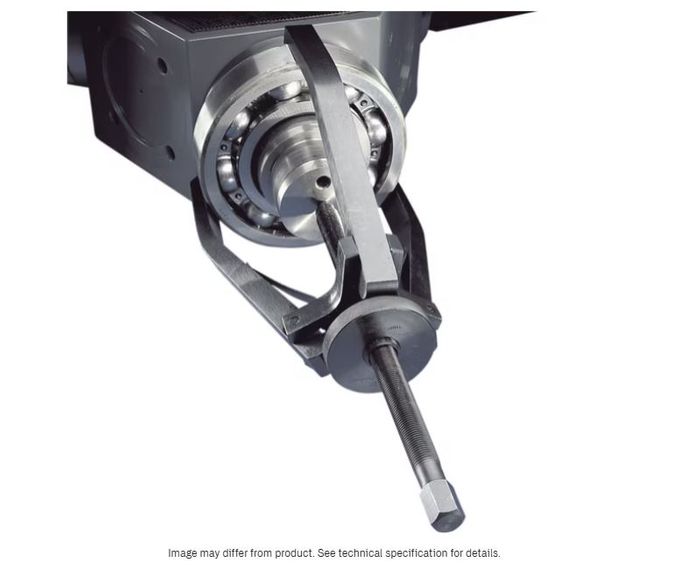

One of the most common ways to dismount small to medium size bearings is to use a mechanical puller. The SKF TMMP 3X230 is a three arm puller for small to medium sized bearings. It helps the user to safeguard against damage to the bearing or to the bearing seating during dismounting. The SKF Standard Jaw Pullers TMMP series allow for easy and fast dismouting jobs and safe puller operation.

Cone system for automatic centring and secure positioning of arms
Strong springs keep arms apart for easy operation
Hardned, high quality carbon steel

Dimensions

Width of grip external	40.0 – 230.0 mm
Effective arm length	210 mm
Claw height	9 mm
Claw length	13 mm
Claw width	24 mm
Spindle head, hexagon size	21
Total spindle length	373 mm

Properties

Recommended applications	For the dismounting of bearings, gears, pulleys and other industrial ring shaped components in industrial, construction and agricultural applications with an interference fit on the shaft
Suitable for workpiece dismounting from a Cylindrical seating (straight shaft)	Yes
Suitable for bearing dismounting from a Tapered seating (conical shaft)	Yes
Suitable for bearing dismounting from a Sleeve (adapter or withdrawal sleeve)	Yes
Suitable for workpiece dismounting from a Blind arrangement (housing with shaft)	No
Suitable for workpiece dismounting from a Housing	No
Suitable for bearing type(s)	All
Dismounting force generation	Spindle
Special features	Cone-system for automatic centring and locking of the arms
Number of arms	3
Pulling force (max)	34 kN
Spindle torque (max)	90 N·m
Spindle nose piece	No
Colour	Black
Material	Alloy engineering steels, hardened and tempered
Coating	Chemical blackened
Content	1x Puller TMMP 3x230 1x Printed instructions for use
Product weight	5.5 kg
