SKF - Tachometer - laser or contact

LCD Display
Stock Code:
TKRT10_SKF
$413.67 incl GST

Stock Locations

  • Ballarat:
    4 In Stock
  • Shepparton:
    1 In Stock

Description

TKRT 10

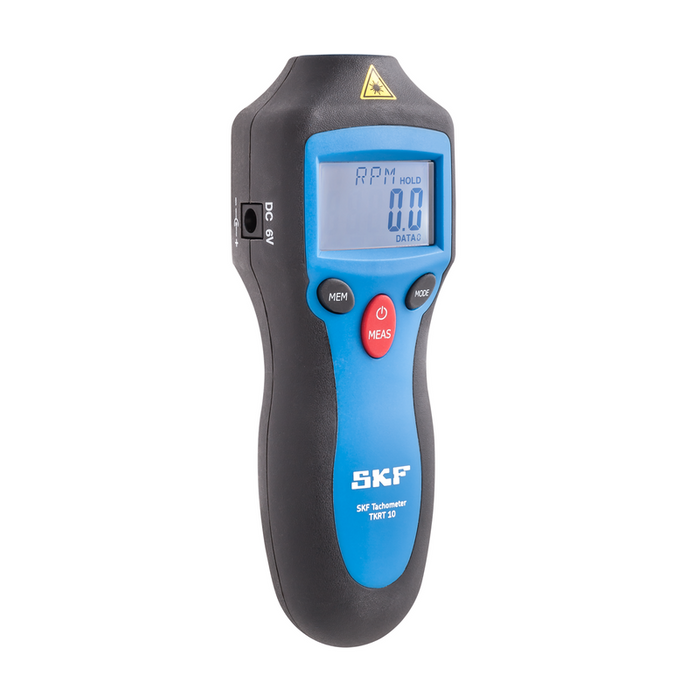

SKF Tachometer TKRT 10

The SKF TKRT 10 is a fast and accurate tachometer utilizing laser or contact to measure rotational and linear speeds. Equipped with a laser and a range of contact adapters, it is a versatile instrument and suits many different applications.

  • Laser/contact measuring system
  • Wide speed measurement range
  • Multiple measurement modes
  • Large, back-lit LCD display
  • Angular range of ±45° for easy measuring
  • Up to 10 readings stored for reference
  • Includes basic set of contact adaptors
  • Supplied in a handy toolcase for easy storage

Dimensions

Instrument dimensions160 x 60 x 42 mm
Case dimensions (l x h x w)260 x 85 x 180 mm

Performance

Optical measurement rotational speed (range)3.0  –  99999.0 r/min
Contact measurement rotational speed (range)2.0  –  20000.0 r/min
Contact measurement linear speed (range)[object Object] m/min
Contact measurement distance (range)50.0  –  500.0 mm

Properties

Recommended applicationsUsed to determine the speed of motors or shafts, as well as for measuring the speed and length of moving surfaces such as V-belts and conveyor belts.
Display5 digit LCD display, backlit
Measurement typesActual, Minimum, Maximum, Average, Total
Optical measurement methodBuilt in laser
Optical measurement modesr/min, Hz
Optical measurement accuracy (+/-)0.05 %
Angle of operation (max)45 °
Contact measurement rotational speed modesr/min, Hz
Contact measurement accuracy (+/-)1 %
Contact accessories
Contact adaptor
Conical tip, conical recess and contact wheel, all included
Linear measurement modes (with contact adaptor)m/min, m/s, yards/min, yard/s, feet/min, feet/s, inch/min, inch/s
Contact measurement accuracy (+/-)1 %
Distance measurement modes (with contact adaptor)metres, feet, yards
Memory10 readings
Laser typeVisible red line laser
Laser wavelength650 nm
Laser power max1 mW
Auto switch offAfter 15 seconds
Tripod connectorYes, 1/4-20 UNC
Housing materialABS plastics
Colour
Blue
Dark Grey
Battery1x 9V Alkaline type IEC 6F22
Battery life12
Power adapter6V DC port, power adapter not included
Instrument weight160 g
Degree of protection (IP)IP40
Operating temperature range0.0  –  50.0 °C
Recommended storage temperature-10.0  –  50.0 °C
Relative humidity10 to 90%, non-condensing
Content
1 x Tachometer TKRT 10
1x Contact adaptor
1x Conical tip
1x conical recess
1x contact wheel
1 x 9V battery
1 x Set of reflective tape
​​​​​​​1 x Instructions for use MP5425
1x Carrying case size A
Total product weight0.68 kg

Logistics

Product net weight0.75 kg
eClass code23-05-19-01
UNSPSC code41112202
