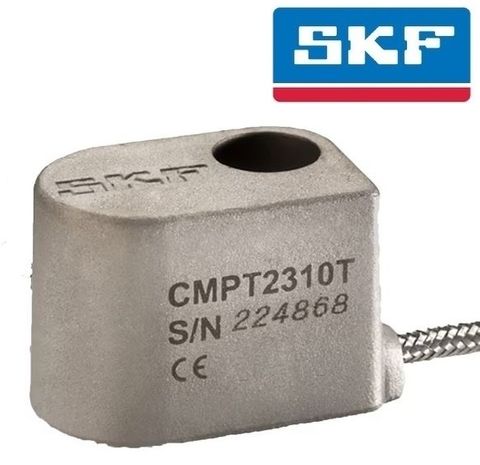

COPPERHEAD SENSOR, TEMP. & vibration, 100mV/g

10M CABLE ONLY FOR MINING INDUSTRY USE OR SIMILAR

Stock Code:

CMPT2310TX10_SKF

$623.95 incl GST

Stock Locations

Ballarat:

Special Order
Shepparton:

Special Order

Make an Enquiry

Add to Favourites

Description

CMPT2310TX10

Sensor for heavy-duty environments, side exit, acceleration and temperature, 230mV/g, temp, 10m cable integral braided cable

The CMPT 2323T is a physically rugged accelerometer optimized for use in heavy-duty environments such as the following industries:
• Mining
• Mineral Processing
• Cement

In these industries, dust, mud and flying debris are commonplace, together with low rotational speeds. When used on shakers and screens, the accelerometer must also withstand high levels of continuous and random vibration.The sensor uses an integral cable with stainless over-braid for protection in heavy-duty environments. A higher sensitivity is used for detection of low amplitude signals in slow moving equipment.

Features:
• For use with all SKF on-line surveillance systems
• 230 mV/g sensitivity
• Acceleration (mV/g) and temperature (mV/°C)
• Physically rugged
• Meets CE, EMC requirements
• Low profile, side exit industrial accelerometer with M6 × 1 and 1/4-28 UNF socket head cap screws provided
• 10 m (16.4 ft.) integral cable with stainless steel over-braid
• Corrosion resistant and encapsulation sealed
• The internal sensor capsule is isolated from the machine ground
• Low noise, highly shock resistant
• Overload protected electronics

SPECIFICATIONS

**Product Attributes**
Manufacturer Product Code	CMPT 2323TX10
Basic Product Description	Sensor for heavy-duty environments, side exit, acceleration and temperature, 230mV/g, temp, 10m cable integral braided cable
UOM	Each
Weight (Kg)	0.070
Certification	CE, EMC requirements
Material	Stainless steel case
IP Rating	IP 67
Cable Length	10 Mtr
Sensor Sensetivity	230 mV/g
Product type	Accelerometers
EAN	7316572836606
