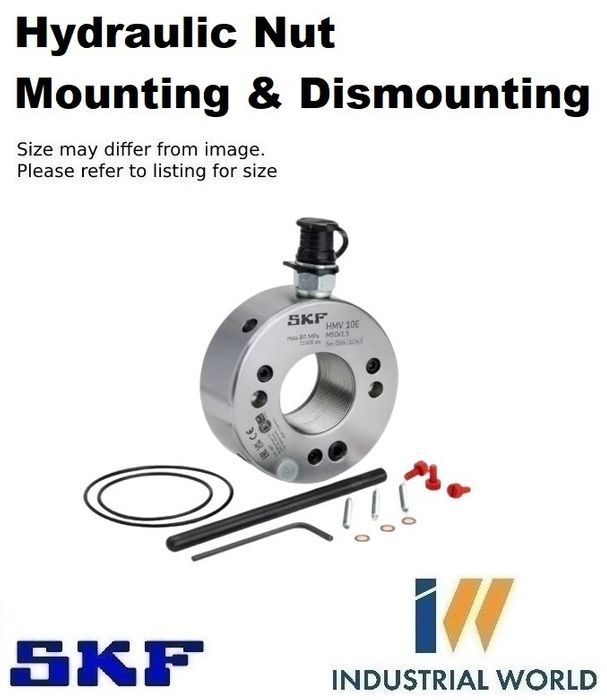

SKF Hydraulic Nut - for mounting and dismounting

Tr280x4
Stock Code:
HMV56E_SKF
$4,788.94 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

HMV 56E
Hydraulic nut for mounting or dismounting of bearings

Facilitates easy and quick application of the high drive-up forces required for mounting bearings on tapered seatings. The hydraulic nut can also be used for dismounting bearings mounted on either adapter or withdrawal sleeves.

  • Quick connection coupling can be fitted on the face or side of the nut
  • A spare set of piston seals and maintenance kit is included
  • Supplied with a quick connection coupling to fit the SKF hydraulic pumps
  • Equipped with eyebolts, two tommy bars and four mating holes on their front face

Properties

TypeMetric thread
Product weight22 kg

Dimensions

Connecting threadTr 280x4
Thread formISO 2901-1977 tolerance class 7H
Maximum piston displacement12 mm
Outer diameter380 mm
Piston area21 100 mm²
Piston inner diameter282 mm
Piston outer diameter363 mm
Piston width9 mm
Width49 mm
Product weight22 kg

Performance

Maximum pressure800 bar
Maximum pressure80 MPa



Click here for product information

Click Here for Hydraulic Nut Information

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Brand:
    SKF
