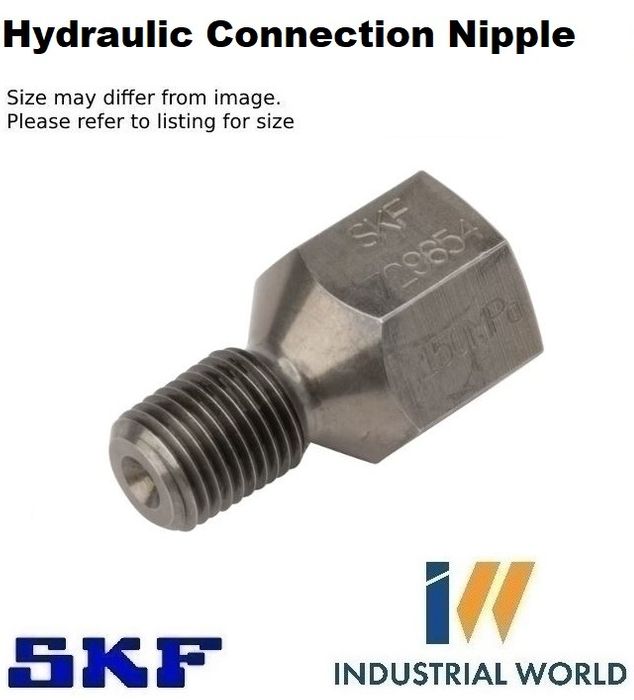

SKF Hydraulic Connection Nipple

150 MPA Fem G1/4 : Male NPT 1/4
Stock Code:
729654/150MPA_SKF
$166.09 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

729654/150MPA

SKF Connection Nipple - 729654 /150MPA

SKF provides a wide range of connection nipples covering many different thread combinations and sizes. They are used as adapters to enable pipes and hoses tobe connected to different thread sizes.

  • Made from high strength materials
  • Enables the SKF Oil Injection Method to be used on many applications

Logistics

Product net weight0.072 kg
eClass code23-05-19-01
UNSPSC code27112908

Properties

Suitable for use with quick connection nippleYes
Type of connecting thread 1Female
Type of connecting thread 2Male
Maximum Pressure1 500 bar
Maximum Pressure150 MPa
Connection typeStraight
MaterialChromium molybdenum steel, hardened and tempered
ColourMetallic
Product weight0.07 kg

Dimensions

Connecting thread 1G 1/4
Connecting thread 2NPT 1/4
Width across flats22 mm
Connecting cone diameter6 mm
Total lenght42 mm
Length of connecting thread 115 mm
Length of connecting thread 215 mm

Click here for catalogue information

Product Guide Attached
