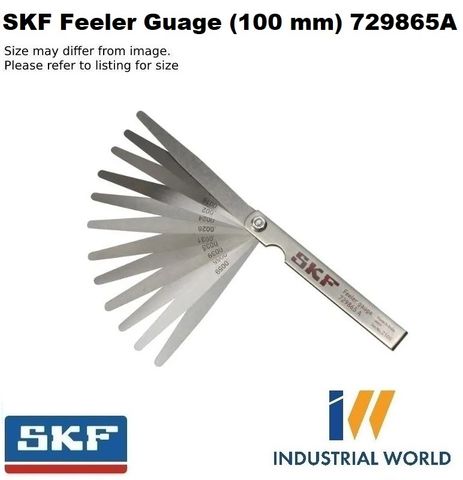

SKF Feeler gauge 100 mm long

0.03/.04/.05/.06/.07/.08/.09/.10/.12
Stock Code:
729865A_SKF
$58.85 incl GST

Stock Locations

  • Ballarat:
    7 In Stock
  • Shepparton:
    2 In Stock
Make an Enquiry
Add to Favourites

Description

729865A

SKF Feeler Gauges 729865 A

SKF Feeler Gauges 729865 A are designed to mearure clearances. A typical application is to measure the internal clearance of spherical roller bearings during the mounting process. The 729865 A consists of 13 blades of 100 mm (4 in.) in a plastic cover.

  • Compact set of feeler gauges
  • Suitable to measure internal bearing clearance of spherical roller bearings
  • 13x blades of 100 mm (4 in.) length
  • Protective plastic cover

Properties

Recommended applications
To mount bearings without the SKF drive up method (manual way to reduce the radial internal clearance)
For checking clearances in bearings
For inspecting clearances in other applications.
Suitable for bearing mounting on a Tapered seating (conical shaft)Yes, as part of checking the radial internal clearance to mount the bearing with the correct interference fit.
Suitable for bearing mounting on a Sleeve (adapter or withdrawal)Yes, as part of checking the radial internal clearance to mount the bearing with the correct interference fit.
Number of Blades13
Blade length100 mm
Blade width10 mm
Blade thickness0.03 mm / 0.04 mm / 0.05 mm / 0.06 mm / 0.07 mm / 0.08 mm / 0.09 mm / 0.10 mm / 0.12 mm / 0.14 mm / 0.15 mm / 0.20 mm / 0.30
Blade thickness tolerances
for blades with thickness (upto and including) 0.10 mm: +0.007 / -0.005 mm
for blades with thickness larger than 0.10 mm: +0.010 / -0.005 mm
Special features
Protective stainless steel housing
Each blade marked with its thickness
Supplied in plastic storage cover
Suitable for Drive up methodNot required but can used as additonal clearance check
Suitable for bearing type(s)SRB
ColourMetallic
MaterialHardened and polished high quality high carbon alloy spring steel
CoatingNone
Product weight0.06 kg

Logistics

Product net weight0.032 kg
eClass code23-05-19-01
UNSPSC code73152101
