SKF Hydraulic Pump (High Presure - Hand)

43,500 PSI (300mpa)
Stock Code:
THHP300_SKF
$12,147.34 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

THHP 300

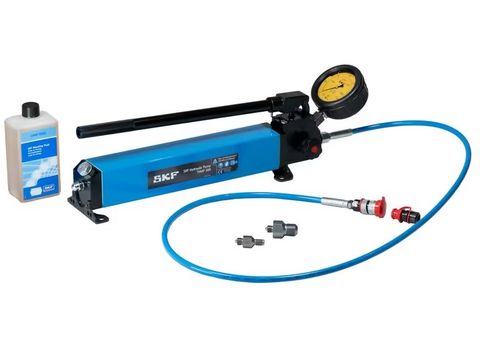

SKF Hydraulic pump

The THHP 300 is a high pressure, easy-to-connect manual hydraulic pump, suitable for many applications using the SKF Oil Injection Method, for oil pressures up to 300 MPa (43 500 psi). The two stage pump includes a 0-300 MPa (0-43 500 psi) pressure gauge, a high-pressure hose, a quick connection coupling and various nipples to connect to the most common applications. Connection nipples enable both G1/4 and G3/4 connections.

  • Two stage pump designed to quickly reach high pressures up to 300 MPa (43 500 psi)
  • Large, mounted gauge shows pressures over the full pressure range
  • Glycerine filled pressure gauge dampens shocks and pressure peaks, giving longer service life and is easier to read
  • Designed to reduce the risk of oil leaking into the environment

Dimensions

Hose length 2 000 mm

Properties

Connection nippleM16x1.5 one female quick connection
Suitable for SKF Drive-up Methodno
Type of pumpDouble stage
Volume per stroke, 1st stage40 cm³, below 1.6 MPa
Volume per stroke, 2nd stage0.5 cm³, above 1.6 MPa
Pressure gaugeyes
Product weight22 kg

Performance

Oil container capacity1 800 ml
Maximum pressure3 000 bar



Click here for catalogue information

Click here for hydraulic tools to mount / dismount

Product Guide Attached
