SKF Grease Meter - back light LCD display

0-700 bar (10,000 psi)
Stock Code:
LAGM1000E_SKF
$833.87 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
1 On Order
Make an Enquiry
Add to Favourites

Description

LAGM1000E

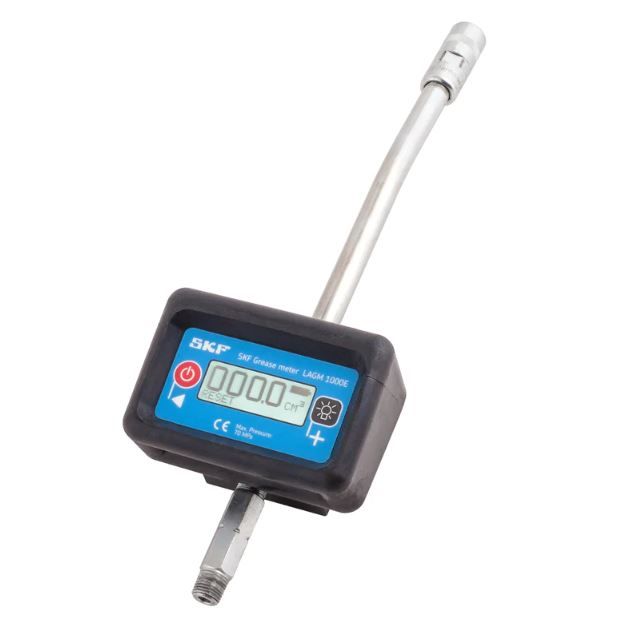

SKF Grease Meter LAGM 1000E

The SKF Grease Meter LAGM 1000E measures accurately the amount of grease passing through. Generally it is difficult to supply an accurate grease quantity per stroke when manually lubricating bearings. The right amount of grease, however, is critical for the bearings' service life, as over- or under-lubrication can result in bearing damage and machine breakdown. Even when weighing the grease amount per stroke, real conditions such as backpressure, wear inside the grease gun and others can result in varying lubrication amounts. Only with a grease meter the actual relubrication quantity can be measured accurately.

  • Suitable for most NLGI 0-3 greases
  • Small, compact and lightweight design
  • Corrosion-free aluminium housing with rubber sleeve protection
  • Compatible with all SKF grease guns
  • Backlit LCD display with large and easy-to-read digits

Properties

Recommended applicationsFor accurately measuring the quantity of grease when manually lubricating bearings or other lubrication points.
Suitable operating devicesFor mounting on grease guns and grease triggers from grease pumps
OperationElectronic grease meter with display
DisplayBacklit LCD display (4 digits / 9 mm)
Software features
Total and Subtotal counting
Autoswitch off programable
Display brightness selectable
Measuring units selectable
Automatic activation
Calibration mode
NLGI consistency classNLGI 0 - NLGI 3
Maximum Pressure700 bar
Maximum Pressure70 MPa
Flow rate (max)1000 cm³/min
Connecting threadM 10 x 1
Measurement accuracy (+/-)
±3% from 0 - 300 bar
±5% from 300 - 700 bar
Degree of protection (IP)IP 67
Measurement modescm³, g, US fl. oz or oz
Battery life
50 hrs, with backlight
2000 hrs, without backlight
10000 hrs, display off
Battery1x 1.5 V AA Alkaline battery
Ambient temperature range-20.0  –  55.0 °C
MaterialAnodised aluminium housing with rubber protective sleeve
Content
Grease meter
Rubber protective sleeve
1x AA battery
Outlet tube
Inlet tube
4-Jaw coupler
Product weight0.4 kg

Logistics

Product net weight0.4 kg
eClass code23-06-91-06
UNSPSC code15121902

Click here for catalogue information

Product guide attached
