TMHC 110E

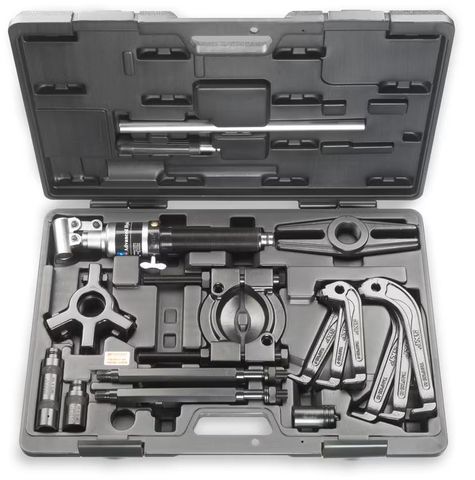

SKF Hydraulic Puller Kit TMHC 110E

The TMHC 110E is a hydraulic puller kit that comnbines a jaw puller and a strong back puller. The kit includes two arm sets with different lengths that can be used in 2-arm or 3-arm configuration and a back puller with a maximum reach of 250 mm (9.8 in.). The hydraulic spindle with safety valve enables safe and effortless dismounting for various bearings and components. The spring-loaded centre piece and self-locking puller arms further support safe and easy puller operation.

Product Specifications

  • Versatile kit with two different arm lengths usable in 2-arm or 3-arm configuration and strong back puller
  • Effortless dismounting with hydraulic spindle
  • Self-locking arms minimise risks of slippage under load
  • Spring-loaded centre point allows easy puller centring
  • Supplied with two hydraulic spindle extension pieces to allow quick adaptation to required pulling length
  • Hydraulic spindle is equipped with safety valve to prevent puller overload

Dimensions

Workpiece outer diameter range, using arms
Set 1: 50 to 110 mm
Set 2: 75 to 170 mm
Reach, using arms (max)
Set 1: 65 mm
Set 2: 115 mm
Claw height8 mm
Claw length15 mm
Claw width25 mm
Hydraulic spindle, piston stroke80 mm
Puller adaptor threadUN 1.5 x 16 tpi
Workpiece outer diameter range, using separator26 to 160 mm
Shaft diameter range, using separator20 to 100 mm
Reach, using separator (max)250 mm, using provided extension rods
Total spindle length505 mm, incl. 2 available extension pieces

Properties

Recommended applicationsFor dismounting of bearings, gears, pulleys and other industrial ring shaped components from shafts in industrial, construction and agricultural applications. Option to choose from jaw puller or separator depending on the space surrounding the component.
Suitable for workpiece dismounting from a Cylindrical seating (straight shaft)Yes
Suitable for bearing dismounting from a Tapered seating (conical shaft)Yes
Suitable for bearing dismounting from a Sleeve (adapter or withdrawal sleeve)Yes
Suitable for workpiece dismounting from a Blind arrangement (housing with shaft)No
Suitable for workpiece dismounting from a HousingNo
Suitable for bearing type(s)All
Dismounting force generationHydraulic spindle,TMHS 100
Special features
Centring and self locking system for firm grip of the component
Useable as 2 or 3 armed puller, Provided with 2 different arm sets, Provided with various spindle extension pieces to quickly adapt the reach
Provide the possibility with the separator to engage the inner ring of the bearing, thus making sure that no withdrawal force is transmitted through the rolling elements
Comes with extension rods to allow useage on longer shafts
Hydraulic spindle with integrated safety valve for safer use
Pulling force (max)100 kN
Total number of arms in kit2 sets of 3
Arms
Set 1, TMHP 10E-9 with arm length 140 mm
Set 2, TMHP 10E-10 with arm length 190 mm
Separator height25 mm
Spindle nose pieceyes, ⌀ 30mm
ColourBlack/Silver
MaterialAlloy engineering steels, hardened and tempered
CoatingBlack phosphated, Hydraulic spindle with trivalent chromium parts
Recommended storage temperature5.0  –  40.0 °C
Relative humiditymax 75%
Case dimensions (l x h x w)580 x 410 x 70 mm
Content
1 x arm-assembly stand
3 x arms, set 1, TMHP10E-9
3 x arms, set 2, TMHP10E-10
1 x separator set
1 x beam
2 x main rods
2 x extension rods, 125 mm
1 x hydraulic spindle TMHS 100, with handle bar
2 x extension pieces for hydraulic spindle: 50, 100 mm
1 x nosepiece with centre point for hydraulic spindle
IFU
Case
Product weight13.5 kg

Logistics

Product net weight12.6 kg
eClass code23-05-19-01
UNSPSC code27111712

Click here for product information

Product Guide Attached.
