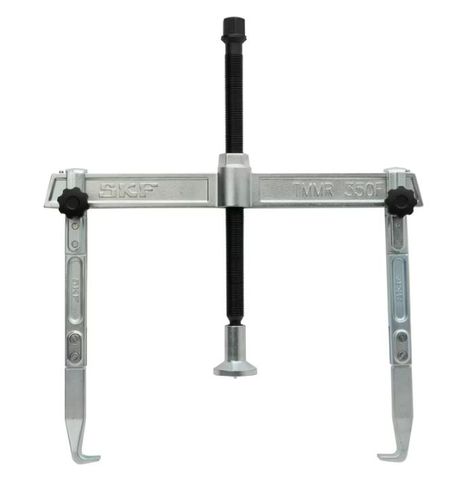

SKF TMMR X-Long Reversible Jaw 2 Leg Puller 60kN

44-336 mm Int 123-384 mm Ext 221 mm Deep
Stock Code:
TMMR350XL_SKF
$494.03 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

TMMR 350XL

SKF Reversible Jaw Puller TMMR 350XL

The multi-purpose SKF Reversible Jaw Puller TMMR 350XL is designed for internal and external pulling jobs of bearings and other components such as gears and pulleys. The puller features an extra long arm set which can be extended further with optional arm extensions. The two arms of the puller can be mounted with the claws facing inside or facing outside, making it a versatile and essential tool for mechanical workshops.

  • Easy adjustment of the width of grip with self-locking arms
  • Essential and versatile tools for every workshop for internal and external pulling appliactions
  • Enhanced corrosion resistance and easy cleaning with zinc passivated arms and beam
  • No permanent deformation of puller arms when used up to maximum withdrawl force
  • Optional accessories further increase the versatility of the puller

Dimensions

Width of grip external44.0  –  336.0 mm
Effective arm length221 mm
Alternative arm lengths
346 mm (with 1 extension set)
471 mm (with 2 extension sets)
596 mm (with 3 extension sets)
Claw height8.5 mm
Claw length16 mm
Total Arm length330 mm
Claw width25 mm
Spindle head, hexagon size24
Puller or Adapter hexagon size32 mm
Total spindle length
367 mm
400 mm with nosepiece

Properties

Recommended applicationsFor the dismounting of bearings, gears, pulleys and other industrial ring shaped components in industrial, construction and agricultural applications with an interference fit on the shaft
Suitable for workpiece dismounting from a Cylindrical seating (straight shaft)Yes
Suitable for bearing dismounting from a Tapered seating (conical shaft)Yes
Suitable for bearing dismounting from a Sleeve (adapter or withdrawal sleeve)Yes
Suitable for workpiece dismounting from a Blind arrangement (housing with shaft)No
Suitable for workpiece dismounting from a HousingYes, with spindle support (not included)
Suitable for bearing type(s)All
Dismounting force generationSpindle
Special features
Reversible arms
Selflocking arms
Extendable arms
Nosepiece with spring loaded tip
Number of arms2
Pulling force (max)60 kN
Width of grip internal123.0  –  384.0 mm
Spindle torque (max)160 N·m
Spindle nose pieceYes, ⌀50 mm
ColourMetallic
MaterialAlloy engineering steels, hardened and tempered
CoatingZinc coated
Content
1x Puller TMMR 350XL
1x Nosepiece
1x Tube of spindle grease LGEV2/0.035
1x Printed instructions for use
Product weight5.2 kg

Logistics

Product net weight5.05 kg
eClass code23-05-19-01
UNSPSC code27111712
