SKF INFRARED THERMOMETER Emissivity adust + probe

-64 Dec C +1400 Dec C 30:1 Ratio
Stock Code:
TKTL21_SKF
$501.74 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
1 On Order
Make an Enquiry
Add to Favourites

Description

TKTL 21

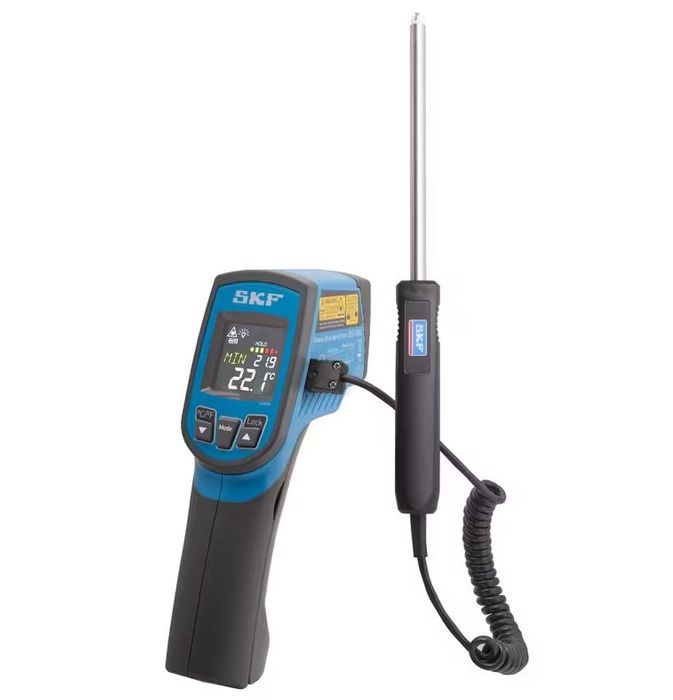

SKF Infrared thermometer

SKF offers a wide range of portable, lightweight and easy-to-use infrared thermometers for thermal inspections. These portable tools help you to detect temperature differences in technical and non-technical applications, this in order to perceive information on abnormalities in operating. SKF Infrared thermometers are fitted with multiple lasers which helps you to easy and more accurate target the object.

  • LCD colour display
  • 8 laser targeting
  • Type-K thermocouple probe
  • Adjustable emissivity
  • High accuracy
  • Fast response time
  • DS ratio of 30:1

Performance

Temperature range using infrared-60.0  –  760.0 °C
Distance to spot ratio30:1

Properties

Emissivity0.1  –  1.0
Response time1 000 ms
Spectral response8.0  –  14.0 µm
AlarmsHigh and low level alarm with warning sound
Laser type8 x red targeting laser dots
Laser wavelength635 nm
Laser power class2 mW
Tripod connectorYes, (1/4-20 UNC)
Power adapterNo
Recommended applicationsUsed in applications where knowing the right temperature is key. E.g. rotating equipment monitoring, HVAC installations, food safety monitoring, fire detection/prevention, and plastic moulding
Temperature range using probe-64.0  –  1400.0 °C
ProbeK type probe, TMDT 2-30 included (max. 900 °C)
DisplayLCD Color with LED backlighting
Resolution
0.1 °C/F (below 999.9)
1 °C/F (above 1000)
Measurement modes
Maximum
Minimum
Average
Difference (between min and max)
Probe/IR dual temperature
Auto switch offAutomatic, 60 seconds after trigger release in IR mode and 12 minutes after trigger release in probe mode
Battery2x AAA (Alkaline (incl.) or Rechargable)
Battery life3 h
Instrument dimensions119 x 172 x 48 mm
Housing materialPC/ABS blend
Colour
Blue
Dark Grey
Instrument weight260 g
Degree of protection (IP)IP 30
Operating temperature range0.0  –  50.0 °C
Recommended storage temperature-10.0  –  60.0 °C
Relative humidity10 to 95%, non-condensing
Case dimensions (l x h x w)530 x 85 x 180 mm
Content
1x IR thermometer (TKTL 21)
1x Temperature probe (TMDT 2-30)
2x AAA Alkaline batteries
1x instructions for use (MP5494)
1x carrying case (size X)
Total product weight1.15 kg

Logistics

Product net weight1.27 kg
eClass code23-05-19-01
UNSPSC code41112202

Click here for catalogue information

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Brand:
    SKF
