SKF Hook Spanner for Housings Suit: KM20

Stock Code:

HN20/SNL_SKF

$80.93 incl GST

Stock Locations

Ballarat:

1 In Stock
Shepparton:

Special Order

Make an Enquiry

Add to Favourites

Description

HN 20/SNL

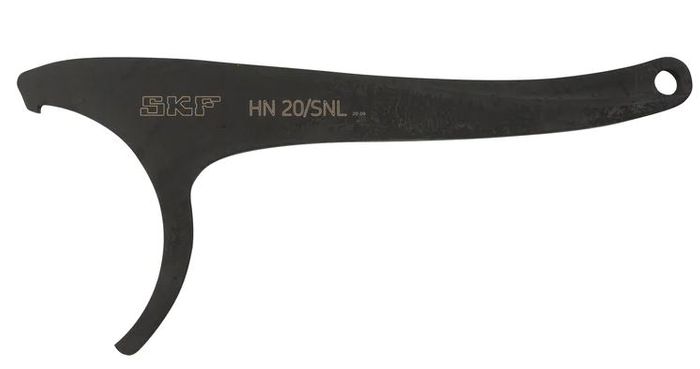

SKF Hook spanner for SNL housings, size 20

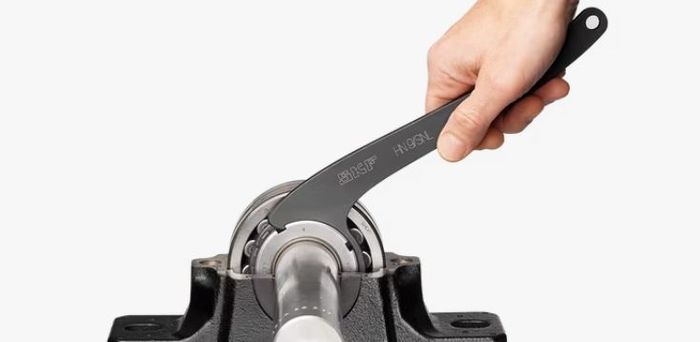

The unique protected design of this SKF Hook spanner, allows it to tighten and loosen lock nuts whilst these are inside SKF split pillow block housings (SNL). Alternatively it can be used as regular hook spanner. They are used to secure and adjust bearings on tapered journals, adapter sleeves and withdrawal sleeves. The SKF hook spanner HN 20/SNL, is designed for nuts with an outer diameter of 130 mm. In particular for lock nuts of series KM 20, KMK 20, KMFE 20, KMT 19, KMT 20, N 022, AN 20, AN 21 and M90x2 (DIN 1804).

Unique design SKF Hook spanner, allows it to tighten and loosen lock nuts whilst these are inside SKF split pillow block housings (SNL)
Can be used as regular hook spanner
Will fit in tight spaces
Long smooth handle to generate a high torque
Drilled hole for easy hanging storage
Laser-engraved designation for easy identification
They fit on a variety of locknuts with outer diameter of 130 mm

Dimensions

Outer diameter lock nut	130 mm
Working length	325 mm
Thickness	10 mm
Length	323 mm
Product weight	0.88 kg

Properties

Allows bearing mounting	No
Fits on lock nuts inside SKF split pillow block housings (SNL)	Yes
Material	Medium carbon steel, hardened and tempered
Material handle	Steel
Coating	Black phosphated
Colour	Black metallic
